Satellite speakers
| Number of satellite speakers |
4 |
| Satellite speakers RMS power |
125 W |
| Satellite speaker impedance |
3 Ω |
Video
| Analog signal format system |
NTSC |
Subwoofer
| Subwoofer RMS power |
250 W |
| Subwoofer impedance |
3 Ω |
| Subwoofer type |
Passive subwoofer |
Center speaker
| Center speaker impedance |
3 Ω |
| Center speaker RMS power |
250 W |
Ports & interfaces
| Component video (YPbPr/YCbCr) out |
1 |
| Digital audio optical in |
2 |
| Headphone outputs |
1 |
| Composite video out |
1 |
Weight & dimensions
| Front speaker dimensions (WxDxH) |
92 x 81 x 128 mm |
| Satellite speaker dimensions (WxDxH) |
81 x 128 x 92 mm |
| Center speaker weight |
1150 g |
| Subwoofer weight |
4700 g |
| Subwoofer dimensions (WxDxH) |
315 x 361 x 181 mm |
| Center speaker dimensions (WxDxH) |
81 x 94.5 x 250 mm |
| Front speaker weight |
470 g |
Other features
| Surround speaker dimensions (WxHxD) |
92 x 81 x 128 mm |
| Surround speaker weight |
470 g |
| HDMI ports quantity |
1 |
Radio
| Radio Data System (RDS) |
Y |
| Preset stations quantity |
30 |
Optical drive
| Optical disc player type |
DVD player |
| Disc types supported |
BD-R, BD-R DL, BD-RE, BD-RE DL, BD-ROM, CD, DVD-R, DVD-R DL, DVD-RAM, DVD-RW |
Audio
| Audio system |
Dolby TrueHD, Dolby Digital Plus, Dolby Digital |
| Equalizer |
Y |
| Total Harmonic Distortion (THD) |
10% |

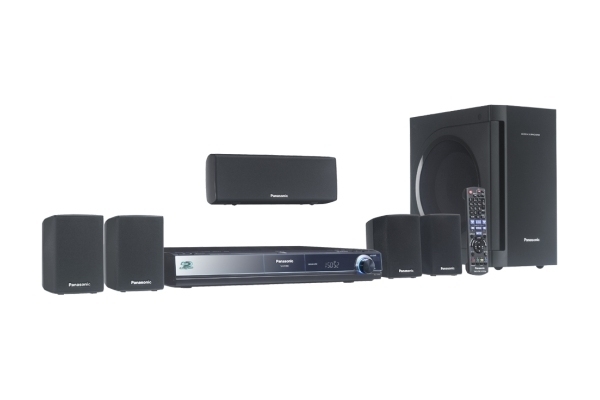

SC-BT200 Blu-ray Home Cinema System, 1000 W
Blu-ray Disc™ Home Cinema Sound System
Bamboo Cone Speaker is a rigid, low-density bamboo material used in the front and centre speaker cones helps achieve a clean, responsive sound. Vocals are pure and clear, and dialogue is crisp and easy to understand. Kelton Subwoofer has an internal structure that is divided into two completely sealed spaces. The drive unit that is mounted to the space in the back causes the air in the front space to vibrate. This causes an Acoustic Filter effect in the front space to absorb unwanted noise while also vibrating the Passive Radiators. It produces highly robust, reverberating bass sounds.
Panasonic's Home Cinema System is a great way to enjoy the music, video and photo contents on your iPod. The list* of iPod content can be displayed on the TV screen, and you can use the remote control from the home cinema system or a VIERA TV to select and play it. * Only for Music and VIDEO ** To enjoy iPod video/photo contents, please connect your home cinema system with SCART cable to your TV.
Because these models are compatible with the VIERA CAST function, you can access YouTube™, Picasa™, and other Internet sites from the special VIERA CAST screen. YouTube™ lets you watch the newest video clips, and Picasa™ lets you view Web-based photos. You can also check weather and stock information on other sites.
The Navigation GUI screen is displayed when the home cinema system is connected to a VIERA TV with an HDMI cable and the power is turned on, or when the Smart Setup button on the main unit is pressed. The Auto Speaker Set function, which optimises the speaker output levels by using the included microphone, also eliminates the need for any special knowledge or experience. Anyone can then easily set it up by following the directions on the screen, for movie enjoyment with the best possible sound.
During Standby Mode; A reduction in power consumption (Approx. 0.3W) has been achieved compared with 2008 model (SC-BT100), when the power is turned off.D21 During Active Mode; By controlling the power consumption depending on the audio output level, a reduction in power consumption has been achieved compared with 2008 model (SC-BT100).
After using the Blu-ray Disc™ Home Cinema System, it is automatically turned off when you return to TV operation using the VIERA Link menu. * 2009 VIERA TV
