Ports & interfaces
Remote (IR) output |
1 |
DVI port |
Y |
Remote (IR) input |
1 |
Ethernet LAN data rates |
10, 100 Mbit/s |
DVI-D ports quantity |
2 |
USB ports quantity |
1 |
Mini VGA (D-Sub) input ports |
1 |
USB version |
2.0 |
HDMI ports quantity |
2 |
Component video (YPbPr/YCbCr) in |
1 |
Design
Bezel width (top) |
6.3 mm |
Bezel width (bottom) |
6.3 mm |
Tilt adjustment |
Y |
Tilt angle |
0 - 45 ° |
Display
Active display area (W x H) |
1209 x 680 mm |
HD type |
Full HD |
Native aspect ratio |
16:9 |
Display type |
LED |
Technical details
Panel Lock |
Y |
Panel type |
IPS |
LED backlighting type |
Edge-LED |
Performance
Panel life |
60000 h |
Multi-display supported |
Y |
TV tuner integrated |
N |
Packaging data
Handheld remote control |
Y |
Batteries included |
Y |
Operational conditions
Operating altitude |
0 - 2800 m |
Power
Power consumption (off) |
0.3 W |
Additionally
Ethernet LAN (RJ-45) ports quantity |
1 |
Ethernet LAN connection |
Y |

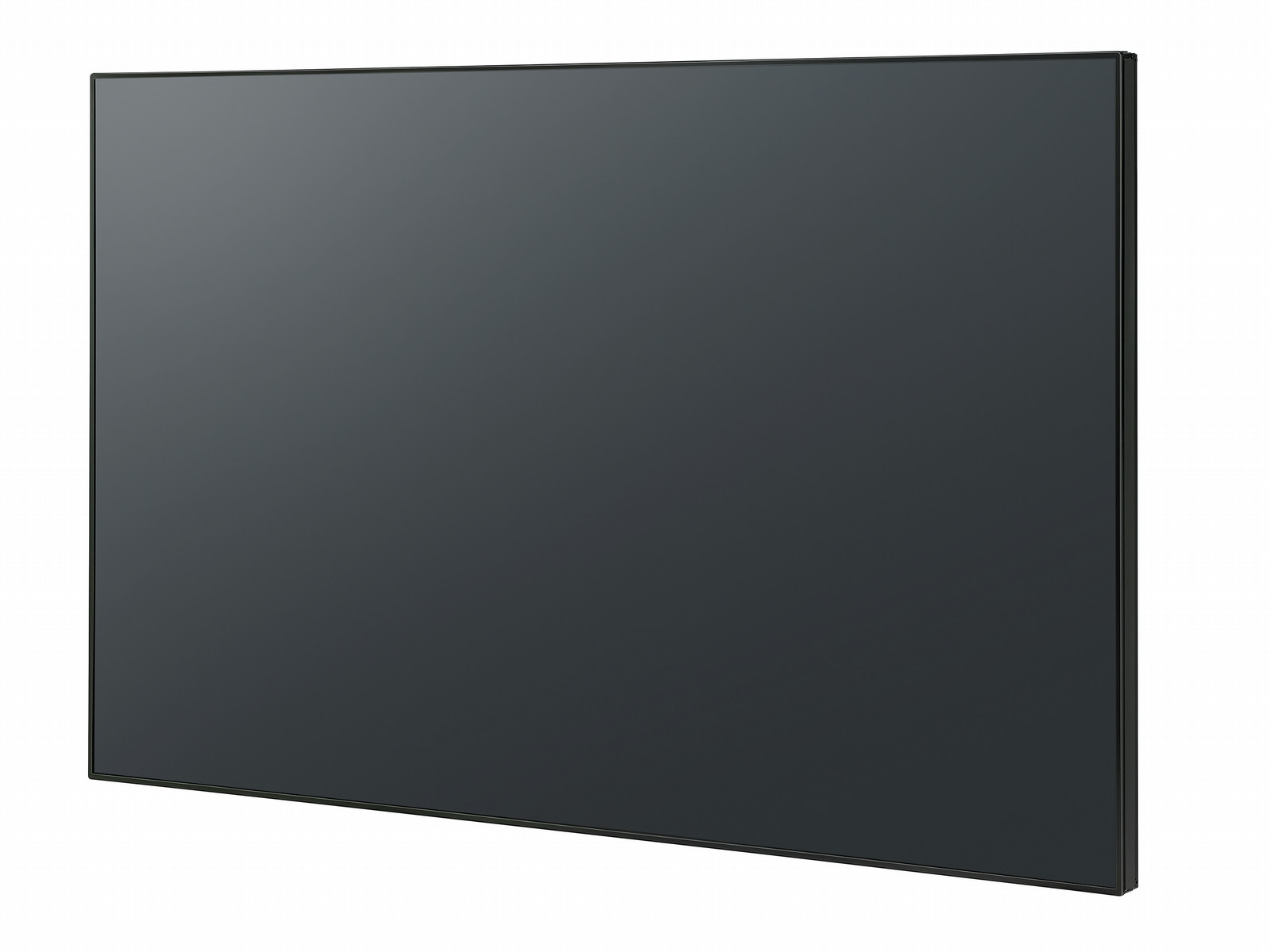

139.7 cm (55 ") FHD IPS (1920 x 1080 px), Edge-LED, 500 cd/m², 8 ms, HDMI, DVI-D, Mini D-Sub, LAN, USB 2.0, 185 W, 24.7 kg, Black
Featuring Industrial Durability and Reliability, as well as a Stylish Appearance
This stylish design blends in with surrounding spaces and fills the screen with images. The 6.3 mm (0.25") bezel width of the LF8 Series is less than half the 16 mm (0.7") bezel width of the LF6 Series. And the slim design makes the depth only 57 mm (2.3"). Since the LF8 Series blends in with almost any surroundings and the screen is nearly filled with images, this display has a powerful, eye-catching impact.
High Brightness for Displaying Easy-to-See Content in Bright Places
Performance with 500 cd/m² of brightness is required for some signage and other professional applications. This allows images to be beautifully displayed even in large, brightly lit spaces, such as train stations and airports.
The IPS Panel Has a Wide Viewing Angle and Minimal Color Fluctuations
There is very little change in color, compared with the VA panel, when the screen is viewed at right or left angles, so the images are crisp and clear. This is ideal for providing correct information to places with a lot of people present, such as public spaces and facilities.
Choose the Installation to Match Your Application
The LF8 Series is designed for use in either portrait or horizontal orientation with no effect on panel color and lifespan, further reducing TCO. A tilt installation up to 45 degrees forward or backward is also possible. The angle can be adjusted for easy viewing when installed in a high location.
USB Media Player for Simple Signage Use Without an STB
The LF8 Series features a USB media player. Signage operation is possible by simply inputting the desired content via USB, eliminating the need for a set-top box. Both videos and still images can be displayed, so a wide variety of original signage content can be used.
Easy Display of Images Optimized for the Display Content and Viewing Environment
Conventional display panels are preset with display modes such as Standard and Dynamic. The LF8 Series comes with an extensive display menu to let you select the most suitable mode for the content to be displayed and the viewing environment. You can select the best mode for the video source and the place of display.
Efficiency and Reliability for Continuous 24-hour Operation
The use of highly durable panel materials and quality electronic components ensures dependable 24-hour operation seven days a week. This makes the LF8 Series ideal for installation in public places, surveillance centers, and other applications where absolute reliability is critical.
