Display
| Vertical scan range |
59.94 - 60 Hz |
| Active display area (W x H) |
1860 x 1047 mm |
| HD type |
4K Ultra HD |
| Native aspect ratio |
16:9 |
| Display type |
LED |
Ports & interfaces
| DVI port |
Y |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| VGA (D-Sub) input ports |
1 |
| DVI-D ports quantity |
1 |
| HDMI in |
4 |
| RS-232C |
Y |
| USB port |
N |
| HDMI ports quantity |
4 |
Technical details
| Panel type |
IPS |
| Portrait mode |
Y |
| LED backlighting type |
Edge-LED |
Performance
| Panel life |
50000 h |
| Multi-display supported |
Y |
| TV tuner integrated |
N |
| HDCP |
Y |
| Operating hours (hours/days) |
24/7 |
Design
| Tilt adjustment |
Y |
| Tilt angle |
0 - 10 ° |
Operational conditions
| Operating altitude |
0 - 2800 m |
Power
| Power consumption (off) |
0.3 W |
Additionally
| Display scan frequency (horizontal) |
15.73 - 135 kHz |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |

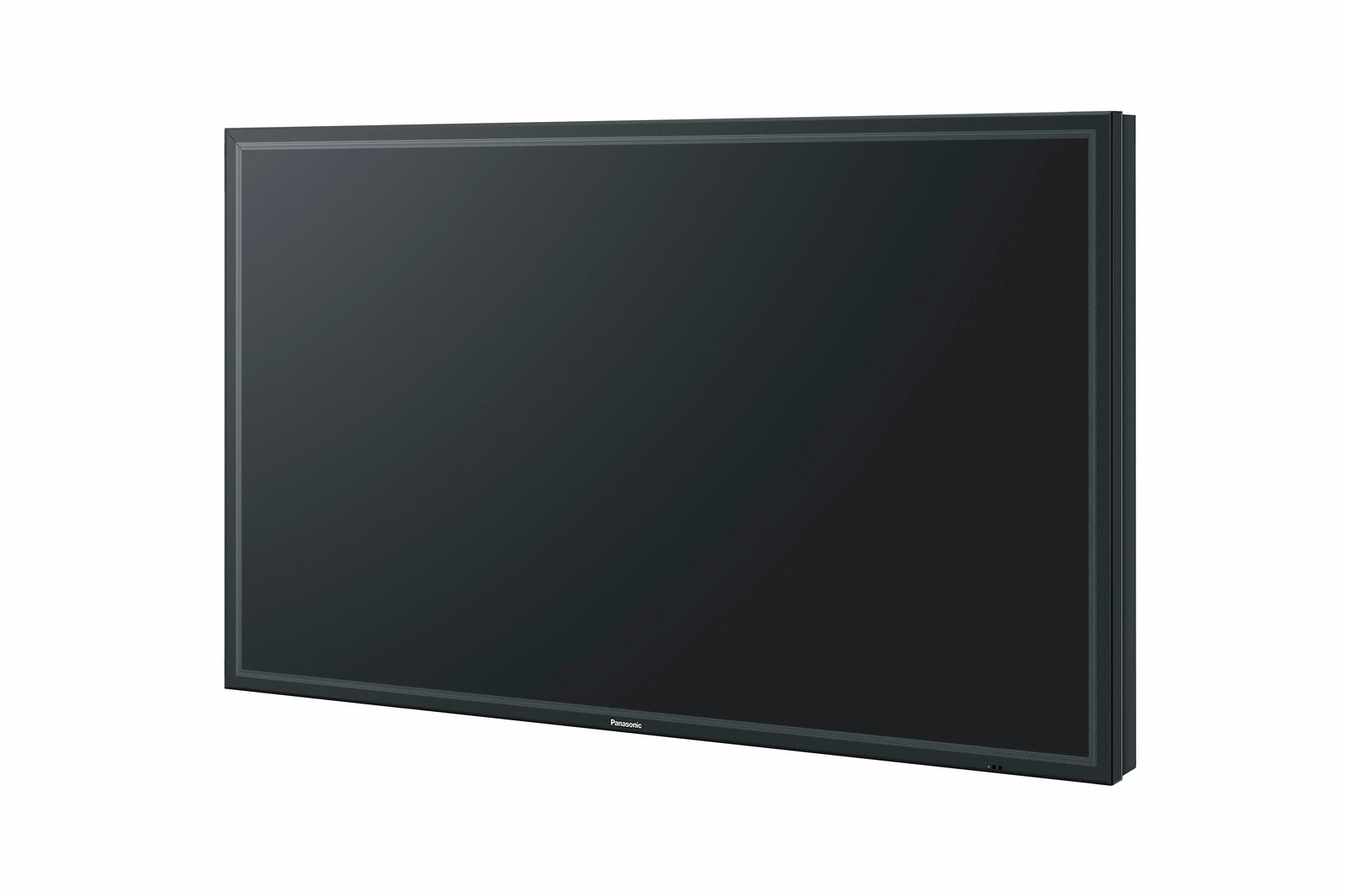

213.36 cm (84 ") IPS/Edge-LED, 3840 x 2160, 500 cd/㎡, 1400:1, 12 ms, 178°
Designed with Rugged Durability for Professional Use
The LQ70 Series has protective grass with 3.5J* impact resistance on the front of the display. With its strong resistance to external impacts, this rugged design allow s safe installation in places where many people walk by, such as train stations, airports, and shopping malls. The special frame construction also resists twisting to boost reliability during installation. Ideal for rental applications, where the panel is frequently transported and installed.
* This value is from a Panasonic test. It does not imply a guaranteed value.
Portrait Installation Capability
When the LQ70 Series is installed vertically, it can display a person in almost life-size dimensions. It is also ideal for digital signage use because it faithfully reproduces the textures and colors of a model's clothing and accessories. It helps to maintain a high-quality brand image. Vertical installation also has no effect on the lifetime of the panel.
Excellent 4K Image Quality
Stunning Panasonic 4K Quality Right Down to the Details
With approximately 8,290,000 pixels, or about four times the pixels of a Full-HD display, images are highly detailed. This dynamic, large-screen display archives true-to-life, finely nuanced images. With an optimal viewing distance of 1.5 times the screen height, the 4K display is an excellent choice for meeting rooms. Where images are often viewed up close, and creates impressive ambience in signage applications for commercial facilities, where it can be expected to attract considerable attention. A 3D LUT (Look-Up Table) developed for broadcast monitors also enables stunning color reproduction in places ranging from low to high brightness.
Non-4K Sources Are Also Beautifully Compensated
Panasonic's new-generation image processing technology (Detail Clarity Processor3*) also reproduces non-4K image content, such as Full-HD images and PC signals, with high picture quality. In addition, it compensates motion images for smooth, non-blurry display, which wad difficult with conventional models.
*Optimize the frequency and level of the input signal in horizontal and vertical directions to produce beautifully sharp, clear images.
Various Interfaces for 4K 60p Video Input
The LQ70 Series includes interfaces for 4K60p video input as standard equipment. In addition to HDMI video input, it is equipped with DisplayPort that support 4K60p video. This enables input from a variety of 4K devices. SDI connection is also possible using an optional 3G-SDI terminal board.
High Color Reproduction (3D-LUT & 6-Axix Color Correction)
The color space on LCD displays tends to narrow when the luminance level drops, and it's often accompanied by color phase shifts. 3D-LUT (Look Up Table) Color Correction on the LQ70 Series has a look up table for each luminance level. Six Axis Coordinate Correction applies image processing to balance the six axes of the three primary colors (RGB) and their complementary colors (CMY). This keeps the intermediate shades of extremely fine colors vibrant and lifelike.
Lighter weight makes installation easier
The LQ70L Series is 23% lighter than the LQ70 Series (for the 98-inch model). By mounting eyebolts to the installation holes of the LQ70L Series and attaching hooks to the eyebolts, the unit can be easily moved and installed using a hoisting device such as a crane. The tough frame resists twisting and distortion, thus reducing the burden on the installation staff.
* The unit must be installed or uninstalled only by a specially trained.
Existing plasma display mounting fixtures can be used
The size and positions of mounting holes on the LQ70 Series are the same as those on a large Panasonic plasma display (103-inch/85-incy model). This enables the use of existing peripheral accessories. When replacing a Panasonic plasma display with the LQ70 Series, the existing mounting fixtures can be used, thus reducing the labor and cost of replacement.
Capable of 4-Input Multi Display with no processor required
The LQ70 Series features a 4-Input Multi Display function. The image can be switched from a full-screen display to a 4-Input Multi Display with a single press of a remote control button. Ideal for checking details in various applications, such as videoconferences, digital signage, and surveillance monitoring.
* Some restrictions exist for input signals and display splitting.
* 3G-SDI input and 4K image are not supported by the 4-Input Multi Display function.
SLOT NX Versatile 4K Input
A new SLOT NX makes it possible to change the interface to match the application. If the optional 3G-SDI Terminal Board is mounted, the LQ70 Series can be connected with SDI. This feature is convenient for use in broadcasting stations, for rental use and for long-distance connection. The LQ70 Series is expandable and will accommodate 4K input in the future.
