Performance
| Trusted Platform Module (TPM) |
Y |
| Position location |
N |
| GPS (satellite) |
N |
Graphics
| Maximum graphics adapter memory |
256 MB |
| Graphics adapter family |
Intel |
Other features
| Battery recharge time (on) |
10 h |
| Battery recharge time (off) |
7 h |
| On-board graphics adapter |
Y |
| Solid-state drive capacity |
32 GB |
| Docking connector |
Y |
| Keyboard layout |
QWERTY |
| Keyboard number of keys |
61 |
| Wi-Fi |
Y |
| Power supply type |
AC/DC |
Processor
| Processor cache |
0.512 MB |
| Processor front side bus |
533 MHz |
Memory
| Memory clock speed |
533 MHz |
| Internal memory |
1 GB |
Ports & interfaces
| Headphone out |
Y |
| Microphone in |
Y |
| DC-in jack |
Y |
Networking
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Bluetooth |
N |
Design
| Cable lock slot |
Kensington |
| Form factor |
Slate |
Storage
| Card reader integrated |
Y |
| Storage media |
SSD |
| Internal storage capacity |
32 GB |
| Compatible memory cards |
SD, SDHC |
Power
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50/60 Hz |
Additionally
| Hard disk drive, user password |
Y |
| Battery performance |
2900 mAh |
| Graphics |
GMA 500 |

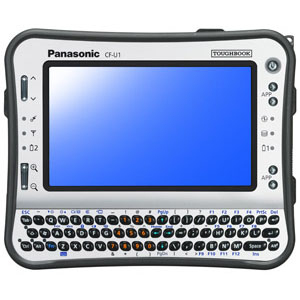

CF-U1AQC2FFP - Intel Atom Z520 1.33GHz, 1GB DDR2, 32GB SSD, 14.224 cm (5.6 ") LCD 1024x600, Intel GMA 500, USB 2.0, 802.11a/b/g/n, 1kg
The Toughbook U1 Essential is the original member of the Toughbook U1 family, and is the clear alternative to legacy Windows Mobile solutions when you need your mobile workers to do more in the field. With full Windows support (Vista Business), rugged modular design, and a host of integrated options like GPS, Gobi™ mobile broadband, 2MP camera, and barcode readers, there are no limits to productivity. And for even more advanced field applications, the Toughbook U1 Ultra is the perfect productivity tool with enhanced outdoor screen viewability, processing power and Windows 7 support.
