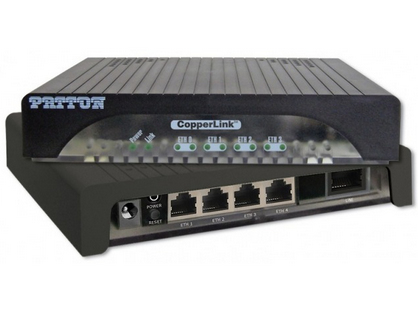

5.7 Mbps CopperLink Ethernet Extender Kit (Local and Remote), 4 x10/100, 100-240VAC
- High Speed Extension—Achieve speeds up to 5.7 Mbps.
- Multi-rate Selection—Just plug the units in and select the ideal user-configurable rate for your application.
- CopperLink 2-Wire Connection—Easy 2-wire CopperLink connection via built-in RJ-11 port.
- Built-in 4-port Ethernet Switch—Connect up to four Ethernet devices using the integrated 4 X 10/100Base-T, auto-sensing, full/half-duplex Ethernet switch.
- Transparent LAN Bridging—Transparently pass higher-layer protocols with support for 802.1Q VLAN tagging.
- Automatic Learning, Aging, and Filtering—Keeps local traffic local, ensuring efficient utilization of the long-range link.
- Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
Ethernet extension doesn’t have to be expensive or difficult. Patton’s CL1314 long range Ethernet Extenders open the door to cost-effective Ethernet extension that is easy to set up. Featuring plug-and-play installation, the CL1314 CopperLink Ethernet Extenders leverage existing copper twisted-pair infrastructure to interconnect Ethernet devices and networks at high speeds over long distances.
Operating over standard 0.5 mm (24 AWG) voice-grade wiring, the CL1314 delivers speeds up to 5.7 Mbps and extends Ethernet connections across distances ranging from 2.7 to 6.9 km (1.7 to 4.3 miles). Whether you need connect to a remote office or private-network backbone to a corporate LAN—or interconnect such network-enabled devices such as PCs, digital sensors and IP cameras—Patton Ethernet Extenders offer the industry’s optimum combination of speed and distance.
Patton’s CopperLink Ethernet Extenders ensure hassle-free set-up and operation, while achieving the highest possible line rate for the required distance and electro-magnetic environment. Users “hard-set” the desired line rate via DIP switches or console Telnet.
The CL1314 comes with a built-in four-port, auto-sensing, 10/100Base-TX Ethernet switch that provides automatic medium-dependent interface crossover capability (auto-MDIX). That means you can use cross-over or straight-through cables (whichever is handy) to connect up to four Ethernet devices. The auto-MDIX feature detects the polarity of the cabling on each port, and automatically configures the signaling to match. Absolutely no user-configuration is required.
Operating at layer 2 of the OSI model (data link layer), the CL1314 transparently passes all higher-layer protocols—including VLAN tagging, multicast addressing, VPN pass-through for IPsec, and all IP-video compression schemes. All common industrial protocols are also transparently supported, including MODBUS/TCP and PROFINET IO.
Set-up is easy! Simply connect up to four LAN devices to the Ethernet switch, plug the copper twisted-pair into each extender, and apply power! For simple, cost-effective and efficient Ethernet extension, Patton's CopperLink Ethernet Extenders are the ideal solution!
<b>Applications</b>
Typical Application When interconnecting sites on a corporate campus, buildings and network devices often lie beyond reach of a standard Ethernet segment. Now, you can use existing copper network infrastructure to connect remote LANs across longer distances and at higher speeds than previously thought possible.
Patton’s CopperLink long range Ethernet Extender is the ideal solution for simple, cost-effective, high-speed campus LAN extension. Ethernet plug-‘n’-play operation gets your network up-and-running in seconds. Providing four auto-sensing full/half duplex 10/100Base-T Ethernet ports—plus an integrated crossover switch for hassle-free system setup—the value of this Ethernet extender is unsurpassed.
- Plug-and-Play—Just unpack a pair of extenders and plug in the cables. Apply power and your connection is up and running. It just doesn’t get any easier!
- High Speed/Long Reach—The CL1314 Ethernet extender provides the industry’s ultimate combination of speed and distance!
