Performance
| Motherboard form factor |
Micro ATX |
| Audio system |
Realtek ALC655 |
Memory
| Supported memory clock speeds |
400, 533, 667, 800 MHz |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
BIOS
| BIOS memory size |
4 MB |
| ACPI version |
1.0 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Graphics controller |
Mirage Graphics |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
2 |
| Number of Parallel ATA connectors |
4 |
| ATX Power connector (24-pin) |
Y |
| Floppy disk drive connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Front panel audio connector |
Y |
| CNR slot |
Y |
Graphics
| Maximum graphics adapter memory |
128 MB |
| On-board graphics adapter |
Y |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Networking
| Networking features |
Fast Ethernet |
Packaging content
| Quick installation guide |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
A33G, AM2, SiS 761GX/965L, Micro-ATX, DDR2, PCI-E, 2x240-pin DIMM, 4xUltra DMA, Fast Ethernet

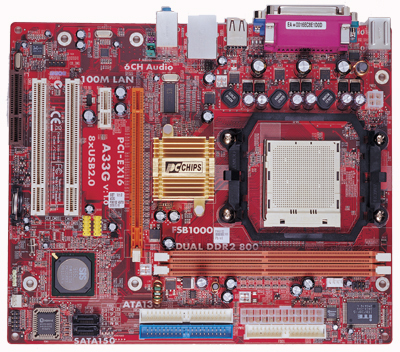

A33G (V1.0)
A33G is one of the most advance and unique modules of PCCHIPS production.It can also support latest AMD AM2 CPUs,up to 1000MHz FSB,Dual-DDR2 800,two Serial ATA and 8 USB 2.0 ports.With embedded Mirage1 Graphic engine,128M share memory,one PCI ExpressX16 slot and one PCI ExpressX1 slot,all these advance supports,we believe your computer can run with best performance and bring you the great value and enjoyment.
FSB 1000 (K8)
Supports the latest 1000MHz front side bus AMD Athlon 64/ Athlon 64 FX CPU.
Dual DDR2 800
Doubles the bandwidth of your system memory up to 12.8GB/s and pumps up the system performance.
PCI Express
Delivers up to a 4x increase in graphics and 2x I/O bandwidth for smooth multimedia performance.
10/100 LAN
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card.
Serial-ATA
Serial ATA is the next generation ATA specification that provides superior performance. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.
USB 2.0
USB 2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
6-Channel Audio
Onboard 6-channel audio CODEC supports uncompromising DVD audio quality, bringing a more vivid sound experience and high-quality 6-channel audio without having to buy advanced sound cards.
Color Map
Color-coded pin headers and slots make it easy to match plug that plugs with cables without checking the silk screen for installation instructions.
ATA133
Supports Ultra DMA 33/66/100/133 IDE devices, data transfer rate up to 133MB/s.
SATA RAID
SATA RAID allows you to join several hard drives and increase data transfer by separating data (RAID 0) or by keeping 100% secure data duplication (RAID 1). This fulfills a total performance and security purposes that you need for your data.
