Internal I/O
| S/PDIF out connector |
Y |
| Front panel audio connector |
Y |
| Chassis intrusion connector |
Y |
| Number of COM connectors |
1 |
| CPU fan connector |
Y |
| CD/AUX audio in |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Floppy disk drive connector |
Y |
| S/PDIF in connector |
Y |
| ATX Power connector (24-pin) |
Y |
| USB 2.0 connectors |
3 |
| Number of SATA connectors |
4 |
Other features
| Graphics controller |
NVIDIA nForce430 |
| Controller (2nd) interface type |
Serial ATAII |
| Controller interface type |
Ultra DMA |
Back panel I/O ports
| Serial ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
1 |
| PS/2 ports quantity |
2 |
Graphics
| On-board graphics adapter |
Y |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Networking
| Networking features |
Fast Ethernet |
Memory
| Maximum internal memory |
8 GB |
| Number of memory slots |
2 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
A51G (V7.1), socket AM3, NVIDIA GeForce 6150SE/nForce 430, NVIDIA MCP61P, Micro-ATX, DDR3, PCI-E, 2x240-pin DIMM, Fast Ethernet

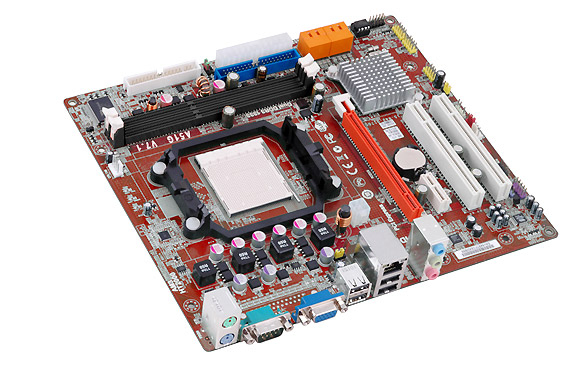

<b>A51G (V7.1)</b>
PCCHIPS A51G supports the new socket AM3 for AMD Phenom II™ processor, and features NVIDIA MCP61P integrated chipset, which deliveries the outstanding performance to support Dual-Channel DDR3 memory up to DDR3 1333. A51G is the best choice for family and commercial use, it delivers a high performance and professional for AMD platform solution.
<b>AMD Phenom II</b>
With the state-of-the-art technology, AMD’s next generation processor, AMD Phenom II, enables the power of platform solutions for gaming, multitasking, and digital entertainment with outstanding performance and energy efficiency.
<b>PCI Express</b>
Delivers up to a 4x increase in graphics and 2x I/O bandwidth for smooth multimedia performance.
<b>ATA133</b>
Supports Ultra DMA 33/66/100/133 IDE devices, data transfer rate up to 133MB/s
<b>USB 2.0</b>
USB 2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers
<b>Socket AM3</b>
The latest socket AM3 supports AMD’s AM3 processors which have featured the integrated memory controller for DDR3 memory that provides much higher bandwidth to enhance the overall system performance.
<b>6-channel High Definition Audio</b>
Integrated 6-channel High Definition Audio CODEC delivering advanced multi-channel audio and bringing you the experience of home theater-quality sound.
<b>Serial-ATA II</b>
Support N-ports SATAII running at 300MB/s at 2x double speed than SATA. Fully compatible with soon-to-be-released SATA HDD, CD-ROM and other cutting edge devices with NCQ function support.
