Performance
Motherboard form factor |
Micro ATX |
Audio system |
ALC101 |
Memory
Supported memory clock speeds |
200, 266 MHz |
Memory voltage |
2.5 V |
Number of memory slots |
2 |
Maximum internal memory |
1 GB |
BIOS
BIOS memory size |
2 MB |
ACPI version |
1.0 |
Back panel I/O ports
Parallel ports quantity |
1 |
Serial ports quantity |
1 |
PS/2 ports quantity |
2 |
Headphone outputs |
1 |
Microphone in |
Y |
VGA (D-Sub) ports quantity |
1 |
Other features
Graphics controller |
SIS 305 3D Graphic |
Internal I/O
Number of Parallel ATA connectors |
2 |
Floppy disk drive connector |
Y |
CD/AUX audio in |
Y |
CPU fan connector |
Y |
Chassis intrusion connector |
Y |
Number of EATX power connectors |
1 |
Front panel audio connector |
Y |
CNR slot |
Y |
Graphics
Maximum graphics adapter memory |
16 MB |
On-board graphics adapter |
Y |
Networking
Networking features |
Fast Ethernet |
Packaging content
Quick installation guide |
Y |
Additionally
Ethernet LAN (RJ-45) ports quantity |
1 |

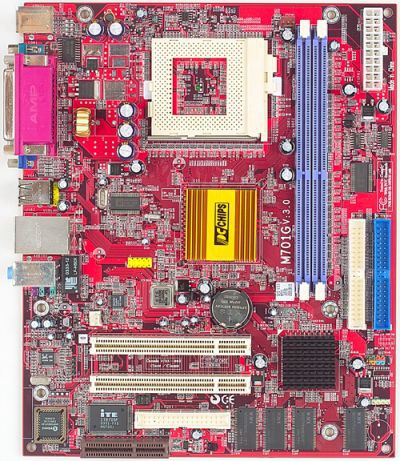

M701G (V1.1), socket 370, SiS 635, Micro-ATX, DDR, PCI, 2x184-pin DIMM, 2xUltraDMA, Fast Ethernet
M701G (V1.1)
M701G is the most advance and unique module from PCCHIPS production. It supports socket 370 for Intel P3 Tualatin FSB133M CPU, DDR266 and 3D Graphic engine with 16MB memory onboard.
10/100 LAN
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card.
Color Map
Color-coded pin headers and slots make it easy to match plug that plugs with cables without checking the silk screen for installation instructions.
ATA100
Supports Ultra DMA 33/66/100 IDE devices, data transfer rate up to 100MB/s.
