Memory
| Supported memory clock speeds |
266 MHz |
| Memory voltage |
2.5 V |
| Number of memory slots |
2 |
| Maximum internal memory |
2 GB |
BIOS
| BIOS memory size |
2 MB |
| ACPI version |
1.0 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Graphics controller |
UniChrome 3D |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of Parallel ATA connectors |
2 |
| Floppy disk drive connector |
Y |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
| CNR slot |
Y |
Graphics
| Maximum graphics adapter memory |
64 MB |
| On-board graphics adapter |
Y |
Performance
| Audio system |
C-Media CMI9761A |
Networking
| Networking features |
Fast Ethernet |
Packaging content
| Quick installation guide |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

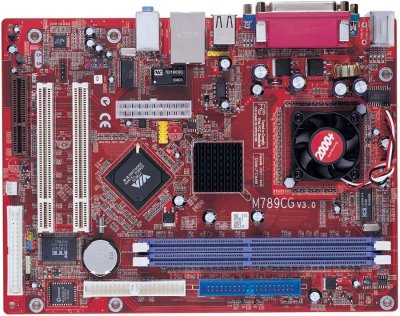

M789CG (V3.0A), socket 370, CLE266/8235, DDR, PCI, 2x184-pin DIMM, 2xUltraDMA, Fast Ethernet
M789CG (V3.0A)
M789CG V3.0A motherboard is based on the CLE266/8235CD chipset. Supporting VIA C3 Samual 2 processor onboard, up to 133MHz FSB, DDR266 with UniChrome 3D Graphic engine, it shall deliver you both performance and great value.
FSB 133 (P3)
Supports the latest 133MHz front side bus Intel Pentium III Tualatin CPU.
10/100 LAN
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card.
USB 2.0
USB 2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
Color Map
Color-coded pin headers and slots make it easy to match plug that plugs with cables without checking the silk screen for installation instructions.
ATA133
Supports Ultra DMA 33/66/100/133 IDE devices, data transfer rate up to 133MB/s.
