Performance
| Motherboard form factor |
Flex-ATX |
| Audio system |
VIA VT1612A |
Memory
| Supported memory clock speeds |
266 MHz |
| Memory voltage |
2.5 V |
| Number of memory slots |
2 |
| Maximum internal memory |
2 GB |
BIOS
| BIOS memory size |
2 MB |
| ACPI version |
1.0 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Graphics controller |
UniChrome 3D |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of Parallel ATA connectors |
2 |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CD/AUX audio in |
Y |
| Azalia Digital Header (ADH) connector |
1 |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of EATX power connectors |
1 |
| CNR slot |
Y |
Graphics
| Maximum graphics adapter memory |
64 MB |
| On-board graphics adapter |
Y |
Networking
| Networking features |
Fast Ethernet |
Packaging content
| Quick installation guide |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
M789CLU (V1.2), CLE266/8235, Flex-ATX, DDR, PCI, 2x184-pin DIMM, 2xUltraDMA, Fast Ethernet

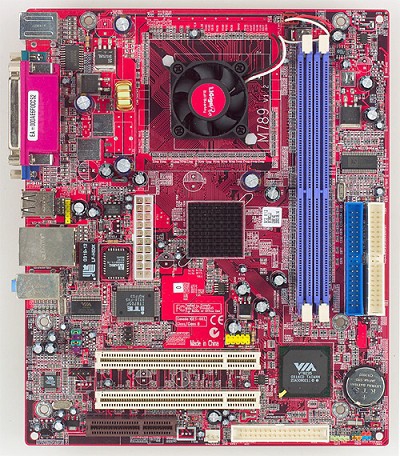

M789CLU (V1.2)
M789CLU V1.2 motherboard is based on the CLE266/8235 chipset. Supporting VIA C3 Samual 2 processor onboard, up to 133MHz FSB, DDR266 with UniChrome 3D Graphic engine, it shall deliver you both performance and great value.
10/100 LAN
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card.
USB 2.0
USB 2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
Color Map
Color-coded pin headers and slots make it easy to match plug that plugs with cables without checking the silk screen for installation instructions.
ATA133
Supports Ultra DMA 33/66/100/133 IDE devices, data transfer rate up to 133MB/s.
