Performance
Motherboard form factor |
Micro ATX |
Audio system |
C-Media CMI9738 |
Memory
Supported memory clock speeds |
266, 333, 400 MHz |
Memory voltage |
2.5 V |
Number of memory slots |
2 |
Maximum internal memory |
2 GB |
BIOS
BIOS memory size |
2 MB |
ACPI version |
1.0 |
Back panel I/O ports
Parallel ports quantity |
1 |
Serial ports quantity |
1 |
PS/2 ports quantity |
2 |
Headphone outputs |
1 |
Microphone in |
Y |
VGA (D-Sub) ports quantity |
1 |
Other features
Graphics controller |
Real256E 3D |
Internal I/O
USB 2.0 connectors |
1 |
Number of Parallel ATA connectors |
2 |
Peripheral (Molex) power connectors (4-pin) |
1 |
CD/AUX audio in |
Y |
CPU fan connector |
Y |
Chassis intrusion connector |
Y |
Number of EATX power connectors |
1 |
Front panel audio connector |
Y |
CNR slot |
Y |
Graphics
Maximum graphics adapter memory |
64 MB |
On-board graphics adapter |
Y |
Expansion slots
PCI slots |
2 |
AGP x8 slots |
1 |
Networking
Networking features |
Fast Ethernet |
Packaging content
Quick installation guide |
Y |
Additionally
Ethernet LAN (RJ-45) ports quantity |
1 |
M863G (V1.5A), socket A, SiS 741GX/963L, Micro-ATX, DDR, AGP8X, PCI, 2x184-pin DIMM, 2xUltraDMA, Fast Ethernet

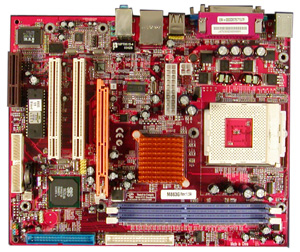

M863G (V1.5A)
M863G is one of the most advance and unique modules of PCCHIPS production. It can also support latest AMD Athlon XP CPUs, up to 333MHz FSB, DDR333 and 6 USB 2.0 ports. With embedded Ultra256 Graphic engine, 64M share memory and one AGP8X slot, all these advance supports, we believe your computer can run with best performance and bring you the great value and enjoyment.
DDR-333
DDR 333 enables bandwidth up to 2.7GB/s providing enhanced system performance.
AGP-8X
AGP8X / AGP 3.0 enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s, twice faster than AGP4X.
10/100 LAN
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card.
USB 2.0
USB 2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
Color Map
Color-coded pin headers and slots make it easy to match plug that plugs with cables without checking the silk screen for installation instructions.
ATA133
Supports Ultra DMA 33/66/100/133 IDE devices, data transfer rate up to 133MB/s.
