Expansion slots
| PCI slots |
2 |
| AGP x8 slots |
1 |
Performance
| Motherboard form factor |
Micro ATX |
| Audio system |
C-Media CMI9761A |
Memory
| Supported memory clock speeds |
266, 333, 400 MHz |
| Memory voltage |
2.5 V |
| Number of memory slots |
2 |
| Maximum internal memory |
2 GB |
BIOS
| BIOS memory size |
2 MB |
| ACPI version |
1.0 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Graphics controller |
Mirage 2 Graphics |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
2 |
| Number of Parallel ATA connectors |
2 |
| Floppy disk drive connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
| CNR slot |
Y |
Graphics
| Maximum graphics adapter memory |
128 MB |
| On-board graphics adapter |
Y |
Networking
| Networking features |
Fast Ethernet |
Packaging content
| Quick installation guide |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

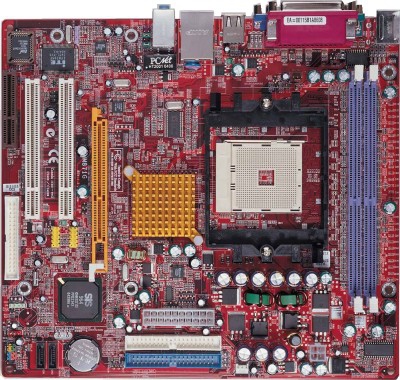

M871G (V1.5), socket 754, SiS 760GX/964, Micro-ATX, DDR, AGP8X, PCI, 2xUltraDMA, 2x184-pin DIMM, Fast Ethernet
M871G (V1.5)
M871G is one of the most advance and unique modules of PCCHIPS production. It can also support latest AMD Athlon64/Sempron, K8 CPUs, up to 800MHz FSB, DDR400, two Serial ATA and 8 USB 2.0 ports. With embedded Ultra256 3D Graphic engine, 64M share memory and one AGP8X slot, all these advance supports,we believe your computer can run with best performance and bring you the great value and enjoyment.
FSB 800 (K8)
Supports the latest 800MHz front side bus AMD Athlon 64 CPU.
DDR-400
DDR 400 enables bandwidth up to 3.2GB/s providing enhanced system performance.
AGP-8X
AGP8X / AGP 3.0 enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s, twice faster than AGP4X.
10/100 LAN
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card.
USB 2.0
USB 2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
6-Channel Audio
Onboard 6-channel audio CODEC supports uncompromising DVD audio quality, bringing a more vivid sound experience and high-quality 6-channel audio without having to buy advanced sound cards.
Color Map
Color-coded pin headers and slots make it easy to match plug that plugs with cables without checking the silk screen for installation instructions.
ATA133
Supports Ultra DMA 33/66/100/133 IDE devices, data transfer rate up to 133MB/s.
Serial-ATA
Serial ATA is the next generation ATA specification that provides superior performance. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.
SATA RAID
SATA RAID allows you to join several hard drives and increase data transfer by separating data (RAID 0) or by keeping 100% secure data duplication (RAID 1). This fulfills a total performance and security purposes that you need for your data.
