Performance
| Motherboard form factor |
Micro ATX |
| Audio system |
C-Media CMI9761A |
Memory
| Supported memory clock speeds |
266, 333 MHz |
| Memory voltage |
2.5 V |
| Number of memory slots |
2 |
| Maximum internal memory |
2 GB |
BIOS
| BIOS memory size |
2 MB |
| ACPI version |
1.0 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Graphics controller |
Intel Extreme 3D |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of Parallel ATA connectors |
2 |
| Floppy disk drive connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
| CNR slot |
Y |
Graphics
| Maximum graphics adapter memory |
32 MB |
| On-board graphics adapter |
Y |
Expansion slots
| PCI slots |
3 |
| AGP x8 slots |
1 |
Networking
| Networking features |
Fast Ethernet |
Packaging content
| Quick installation guide |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

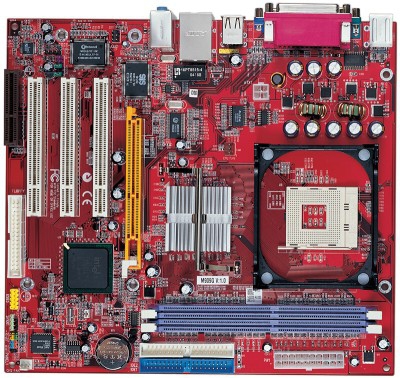

M909G (V1.0A), socket 478, 845GV/ICH4, Micro-ATX, DDR, PCI/AGPro, 2x184-pin DIMM, 2xUltraDMA, Fast Ethernet
M909G (V1.0A)
M909G is one of the most advance and unique modules of PCCHIPS production. It can also support latest Intel Pentium 4, HT & Prescott processor, 533MHz FSB, DDR 333, 6 USB2.0 ports. With all these advance supports, we believe your computer can run with best performance and bring you the great value and enjoyment.
AGPro
Savior for backward compatible purspose when users still have the AGP card. PCCHIPS patent design (AGP Guardian) ensures 100% protection to prevent any AGP 8X/ 4X cards burnt out. The higher performance VGA engine card is, the less performance lose on AGP slot.
DDR-333
DDR 333 enables bandwidth up to 2.7GB/s providing enhanced system performance.
FSB 533
Supports 533MHz front side bus Intel Pentium 4 CPU.
10/100 LAN
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card.
USB 2.0
USB 2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
Color Map
Color-coded pin headers and slots make it easy to match plug that plugs with cables without checking the silk screen for installation instructions.
