Performance
| Motherboard form factor |
ATX |
| Audio system |
C-Media CMI9738 |
Memory
| Supported memory clock speeds |
266, 333, 400 MHz |
| Memory voltage |
2.5 V |
| Number of memory slots |
2 |
| Maximum internal memory |
2 GB |
BIOS
| BIOS memory size |
2 MB |
| ACPI version |
1.0 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of Parallel ATA connectors |
2 |
| Floppy disk drive connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
| CNR slot |
Y |
Graphics
| On-board graphics adapter |
N |
Expansion slots
| PCI slots |
4 |
| AGP x8 slots |
1 |
Networking
| Networking features |
Fast Ethernet |
Packaging content
| Quick installation guide |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

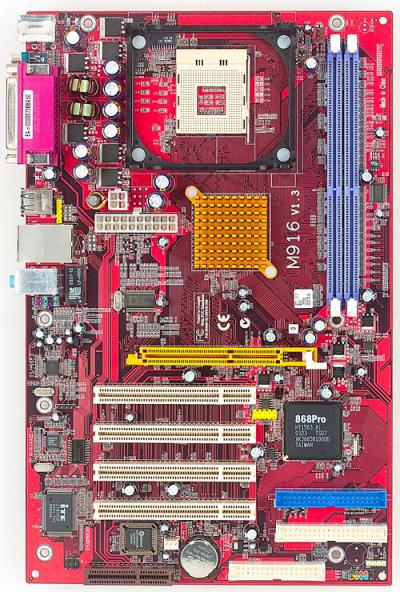

M916 (V1.3a), socket 478, 868Pro HT1683/HT1563, ATX, DDR, AGP8X, PCI, 2xUltraDMA, 2x184-pin DIMM, Fast Ethernet
M916 (V1.3a)
M916 is one of the most advance and unique modules of PCCHIPS production. It can also support latest Intel Pentium 4 HT CPU, up to 800MHz FSB, DDR 400 and 6 USB2.0 ports for feature technology. With all these advance supports, we believe your computer can run with best performance and bring you the great value and enjoyment.
FSB 800 (P4)
Supports the 800MHz front side bus Intel processors.
DDR-400
.
DDR 400 enables bandwidth up to 3.2GB/s providing enhanced system performance
10/100 LAN
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card.
USB 2.0
USB 2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
Color Map
Color-coded pin headers and slots make it easy to match plug that plugs with cables without checking the silk screen for installation instructions.
ATA133
Supports Ultra DMA 33/66/100/133 IDE devices, data transfer rate up to 133MB/s.
