Performance
| Motherboard form factor |
Micro ATX |
| Audio system |
C-Media CMI9761A |
Memory
| Supported memory clock speeds |
200, 266 MHz |
| Memory voltage |
2.5 V |
| Number of memory slots |
2 |
| Maximum internal memory |
2 GB |
BIOS
| BIOS memory size |
2 MB |
| ACPI version |
1.0 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Graphics controller |
ProSavage8 3D |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of Parallel ATA connectors |
2 |
| Floppy disk drive connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CD/AUX audio in |
Y |
| Chassis intrusion connector |
Y |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
| CNR slot |
Y |
Graphics
| Maximum graphics adapter memory |
32 MB |
| On-board graphics adapter |
Y |
Expansion slots
| PCI slots |
3 |
| AGP x4 slots |
1 |
Networking
| Networking features |
Fast Ethernet |
Packaging content
| Quick installation guide |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

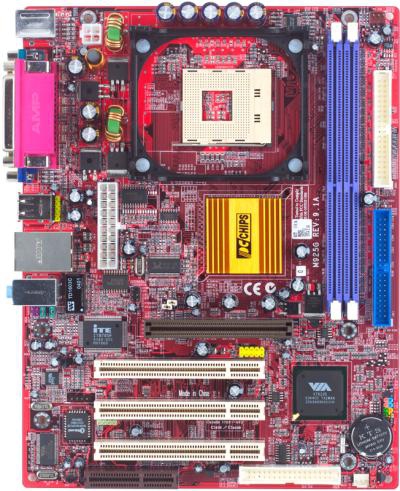

M925G (V9.1b), socket 478, P4M266A/8235, Micro-ATX, DDR, AGP4X/PCI, 2xUltraDMA, 2x184-pin DIMM, Fast Ethernet
M925G (V9.1b)
M925G V9.1B motherboard is based on the P4M266A/8235 chipset. Supporting lastest Intel Socket 478 prescott celeron processor. Up to 533MHz FSB and DDR 266, it shall deliver you both performance and great value.
10/100 LAN
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card.
USB 2.0
USB 2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
6-Channel Audio
Onboard 6-channel audio CODEC supports uncompromising DVD audio quality, bringing a more vivid sound experience and high-quality 6-channel audio without having to buy advanced sound cards.
Color Map
Color-coded pin headers and slots make it easy to match plug that plugs with cables without checking the silk screen for installation instructions.
