Performance
| Motherboard form factor |
Micro ATX |
| Audio system |
ALC655 |
Memory
| Supported memory clock speeds |
266, 333 MHz |
| Memory voltage |
2.5 V |
| Number of memory slots |
2 |
| Maximum internal memory |
2 GB |
BIOS
| BIOS memory size |
2 MB |
| ACPI version |
1.0 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Graphics controller |
Real256E 3D |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of Parallel ATA connectors |
2 |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
Graphics
| Maximum graphics adapter memory |
64 MB |
| On-board graphics adapter |
Y |
Networking
| Networking features |
Fast Ethernet |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

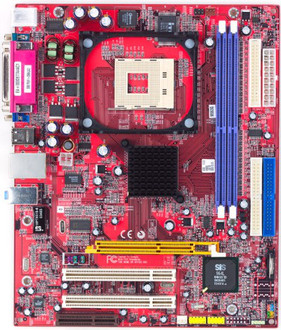

M963GV (V5.0), socket 478, SiS 661GX/964L, Micro-ATX, DDR, AGP8X/PCI, 2x184-pin DIMM, 2xUltraDMA, Fast Ethernet
M963GV (V5.0)
M963GV is one of the most advance and unique modules of PCCHIPS production. It can also support latest Intel Pentium 4, HT&Prescott CPUs, up to 533MHz FSB, DDR400 and 8 USB 2.0 ports. With embedded Real256E Graphic engine, 64M share memory and one AGP8X slot, all these advance supports, we believe your computer can run with best performance and bring you the great value and enjoyment.
FSB 800 (P4)(overclocking)
Supports the latest 800MHz front side bus Intel Pentium 4 CPU.
HT Technology Support
Hyper-Threading technology enables the operating system into thinking it's hooked up to two processors, allowing two threads to be run in parallel, both on separate logical processors within the same physical processor.
DDR-400
DDR 400 enables bandwidth up to 3.2GB/s providing enhanced system performance.
AGP-8X
AGP8X / AGP 3.0 enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s, twice faster than AGP4X.
10/100 LAN
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card.
USB 2.0
USB 2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
6-Channel Audio
Onboard 6-channel audio CODEC supports uncompromising DVD audio quality, bringing a more vivid sound experience and high-quality 6-channel audio without having to buy advanced sound cards.
Color Map
Color-coded pin headers and slots make it easy to match plug that plugs with cables without checking the silk screen for installation instructions.
ATA133
Supports Ultra DMA 33/66/100/133 IDE devices, data transfer rate up to 133MB/s.
FSB 533
Supports 533MHz front side bus Intel Pentium 4 CPU.
