Performance
| Motherboard form factor |
Micro ATX |
| Audio system |
C-Media CMI9761A |
Memory
| Supported memory clock speeds |
266, 333, 400 MHz |
| Memory voltage |
2.5 V |
| Number of memory slots |
3 |
| Maximum internal memory |
3 GB |
BIOS
| BIOS memory size |
4 MB |
| ACPI version |
1.0 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Graphics controller |
ntel Extreme 3D |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
2 |
| Number of Parallel ATA connectors |
2 |
| Floppy disk drive connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
| CNR slot |
Y |
Graphics
| Maximum graphics adapter memory |
32 MB |
| On-board graphics adapter |
Y |
Expansion slots
| PCI slots |
3 |
| AGP x8 slots |
1 |
Networking
| Networking features |
Fast Ethernet |
Packaging content
| Quick installation guide |
Y |
Additionally
| Chipset |
Intel 865GV |
| Ethernet LAN (RJ-45) ports quantity |
1 |

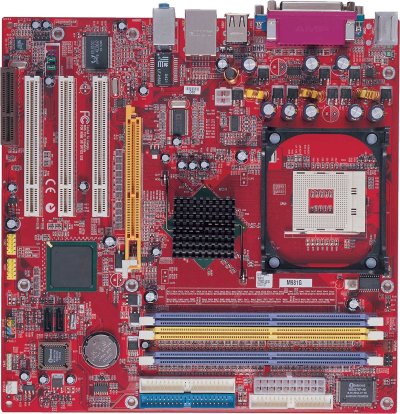

M981G (V5.0A), socket 478, Intel865GV/ICH5, Micro-ATX, DDR, AGPro/PCI, 3x184-pin DIMM, 2xUltraDMA, Fast Ethernet
M981G (V5.0A)
M981 is one of the most advance and unique modules of PCCHIPS production. It can also support latest Intel Pentium 4 Prescott,HT CPUs, up to 800MHz FSB, Dual channel DDR400, AGPro, 8 USB 2.0 and 2 SATA for feature technology. With all these advance supports, we believe your computer can run with best performance and bring you the great value and enjoyment.
FSB 800 (P4)
Supports the 800MHz front side bus Intel processors.
Dual DDR-400
Dual-channel DDR 400 doubles the bandwidth of your system memory up to 6.4GB/s and pumps up the system performance.
AGPro
Savior for backward compatible purspose when users still have the AGP card. PCCHIPS patent design (AGP Guardian) ensures 100% protection to prevent any AGP 8X/ 4X cards burnt out. The higher performance VGA engine card is, the less performance lose on AGP slot.
10/100 LAN
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card.
Serial-ATA
Serial ATA is the next generation ATA specification that provides superior performance. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.
USB 2.0
USB 2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
6-Channel Audio
Onboard 6-channel audio CODEC supports uncompromising DVD audio quality, bringing a more vivid sound experience and high-quality 6-channel audio without having to buy advanced sound cards.
Color Map
Color-coded pin headers and slots make it easy to match plug that plugs with cables without checking the silk screen for installation instructions.
ATA100
Supports Ultra DMA 33/66/100 IDE devices, data transfer rate up to 100MB/s.
