Performance
| Motherboard form factor |
Micro ATX |
| Audio system |
Realtek ALC655 |
Memory
| Supported memory clock speeds |
333, 400, 533 MHz |
| Memory voltage |
2.5 V |
| Number of memory slots |
4 |
| Maximum internal memory |
4 GB |
BIOS
| BIOS memory size |
4 MB |
| ACPI version |
1.0 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Graphics controller |
GMA900 |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
4 |
| Number of Parallel ATA connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| Floppy disk drive connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Front panel audio connector |
Y |
| CNR slot |
Y |
Graphics
| Maximum graphics adapter memory |
128 MB |
| On-board graphics adapter |
Y |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Networking
| Networking features |
Fast Ethernet |
Packaging content
| Quick installation guide |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

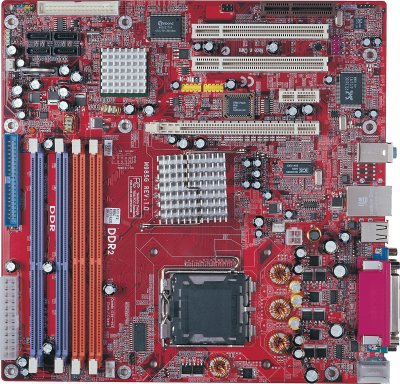

M985G (V1.0), LGA775, 915GV/ICH6, Micro-ATX, DDR/DDR2, PCI-E, 1xUltra DMA, 184-pin/240-pin DIMM, Fast Ethernet
M985G (V1.0)
M985G is one of the most advance and unique modules of PCCHIPS production. It can also support the latest Intel Pentium 4/Celeron D processors, up to 800MHz FSB, DDR 400/DDR2 533, 8 USB2.0 ports and 4 Serial ATA for future technology. All these advance supports, we believe your computer can run with best performance and bring you the great value and enjoyment.
FSB 800 (P4)
Supports the 800MHz front side bus Intel processors.
Dual DDR400/ DDR2 533
Supports latest Dual Channel DDR2 533/400 DIMM and Mainstream Dual Channel DDR400/333 DIMM.Users can use either DDR2 or DDR memory modules.
PCI-E Pro
PCI-E Pro is a PCCHIPS patent design. To make use of the PCI Express interface, it can not only upgrade the expansion of PCI-E x16 graphic card, but also support the Multi-Display function.
PCI Express
Delivers up to a 4x increase in graphics and 2x I/O bandwidth for smooth multimedia performance.
10/100 LAN
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card.
Serial-ATA
Serial ATA is the next generation ATA specification that provides superior performance. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.
USB 2.0
USB 2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
Color Map
Color-coded pin headers and slots make it easy to match plug that plugs with cables without checking the silk screen for installation instructions.
Over-Clocking
Maximizes your system performance by selecting from these overclocking options
- Flexible CPU/DDR core voltage adjustments;
- Adjustable FSB/DDR ratio.
ATA100
Supports Ultra DMA 33/66/100 IDE devices, data transfer rate up to 100MB/s.
