Performance
| Motherboard form factor |
Micro ATX |
| Audio system |
Realtek ALC660 |
Memory
| Supported memory clock speeds |
533, 667 MHz |
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
BIOS
| BIOS memory size |
4 MB |
| ACPI version |
1.0 |
Back panel I/O ports
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Graphics controller |
Mirage3 Graphics |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
2 |
| Number of Parallel ATA connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| Floppy disk drive connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Front panel audio connector |
Y |
| CNR slot |
Y |
Graphics
| Maximum graphics adapter memory |
256 MB |
| On-board graphics adapter |
Y |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Networking
| Networking features |
Fast Ethernet |
Packaging content
| Quick installation guide |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

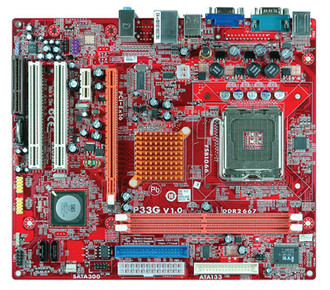

P33G (V1.0), LGA775, SIS 671/968, Micro ATX, DDR2, PCI-E, 2x240-pin DIM, 1xUltra DMA, Fast Ethernet
P33G (V1.0)
P33G is one of the most advance and unique modules of PCCHIPS production. It can also support latest Intel® Core™2 Duo/ Celeron D processors, up to 1066MHz FSB,DDR2 667, two serial ATA II and 8 USB 2.0 ports for features. With embedded Mirage3 Graphics, 256M share memory and one PCI ExpressX16 slot, all these advance supports, we believe your computer can run with best performance and bring you the great value and enjoyment.
FSB 1066 (P4)
Supports the latest 1066MHz front side bus Intel processors.
DDR2 667
Expands memory bandwidth up to 5.3GB/s.
PCI Express
Delivers up to a 4x increase in graphics and 2x I/O bandwidth for smooth multimedia performance.
10/100 LAN
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card.
Serial-ATA II
Support N-ports SATAII running at 300MB/s at 2x double speed than SATA. Fully compatible with soon-to-be-released SATA HDD, CD-ROM and other cutting edge devices with NCQ function support.
USB 2.0
USB 2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
6-Channel Audio
Onboard 6-channel audio CODEC supports uncompromising DVD audio quality, bringing a more vivid sound experience and high-quality 6-channel audio without having to buy advanced sound cards.
Color Map
Color-coded pin headers and slots make it easy to match plug that plugs with cables without checking the silk screen for installation instructions.
Over-Clocking
Maximizes your system performance by selecting from these overclocking options:
- Flexible CPU/DDR core voltage adjustments;
- Adjustable FSB/DDR ratio.
ATA133
Supports Ultra DMA 33/66/100/133 IDE devices, data transfer rate up to 133MB/s.
