Performance
| Motherboard form factor |
Micro ATX |
| Audio system |
VIA VT1708B |
Memory
| Supported memory clock speeds |
667, 800 MHz |
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
BIOS
| BIOS memory size |
4 MB |
| ACPI version |
1.0 |
Other features
| Graphics controller |
Intel GMA 3100 |
Internal I/O
| USB 2.0 connectors |
1 |
| Number of SATA connectors |
2 |
| Number of Parallel ATA connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Front panel audio connector |
Y |
Graphics
| On-board graphics adapter |
Y |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Back panel I/O ports
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Networking
| Networking features |
Fast Ethernet |
Packaging content
| Quick installation guide |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

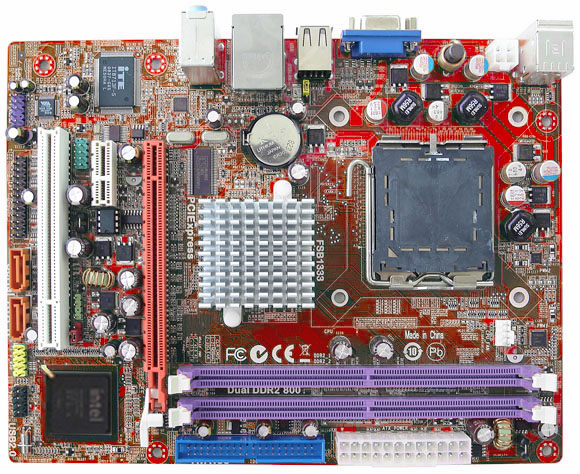

P47G (V1.0), LGA775, Intel G31/ICH7, Micro ATX, DDR2, PCI-E, 2x240-pin DIMM, 1xUltra DMA, Fast Ethernet
P47G (V1.0)
Socket LGA775 and FSB1333/Dual-DDR2 800 Motherboard:
- P47G features the Intel® Bearlake G31 and ICH7 chipsets;
- It has a really small form factor of 255x170 mm with high transfer rate of FSB1333, dual channel DDR2 800 for up-to 4GB memory support;
- Also is compatible with the latest Intel 45nm, dual-core processors;
- P47G is a sure product to access the greatest enjoyment.
Certified For Windows Vista
The latest generation Microsoft O.S., delivers better personal productivity and digital entertainment on your PC through its improved reliability, security, and performance.
FSB 1333 (P4)
Supports the latest 1333MHz front side bus Intel®Processor.
Dual DDR2 800
Doubles the bandwidth of your system memory up to 12.8GB/s and pumps up the system performance.
PCI Express
Delivers up to a 4x increase in graphics and 2x I/O bandwidth for smooth multimedia performance.
10/100 LAN
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card.
Serial-ATA II
Support N-ports SATAII running at 300MB/s at 2x double speed than SATA. Fully compatible with soon-to-be-released SATA HDD, CD-ROM and other cutting edge devices with NCQ function support.
USB 2.0
USB 2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
6-Channel Audio
Onboard 6-channel audio CODEC supports uncompromising DVD audio quality, bringing a more vivid sound experience and high-quality 6-channel audio without having to buy advanced sound cards.
Color Map
Color-coded pin headers and slots make it easy to match plug that plugs with cables without checking the silk screen for installation instructions.
