Performance
| Motherboard form factor |
Micro ATX |
| Audio system |
VIA VT1705 |
Memory
| Supported memory clock speeds |
800, 1066, 1300 MHz |
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
Other features
| Controller (2nd) interface type |
Serial ATAII |
| Graphics controller |
Intel GMAX4500 |
| Controller interface type |
Ultra DMA |
Internal I/O
| USB 2.0 connectors |
2 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
2 |
| Number of Parallel ATA connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| Floppy disk drive connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Front panel audio connector |
Y |
Graphics
| On-board graphics adapter |
Y |
Expansion slots
| PCI slots |
1 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Back panel I/O ports
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Networking
| Networking features |
Fast Ethernet |
Packaging content
| Quick installation guide |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
P49G (V1.0), LGA775, Intel G41/ICH7, Micro ATX, DDR3, PCI-E, 2x240-pin DIMM, 2xUltra DMA, 2xSerial ATAII, Fast Ethernet

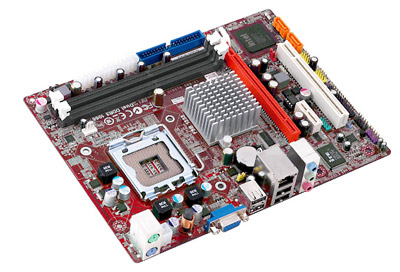

P49G (V1.0)
Socket LGA775 and FSB1333/Dual-DDR3 1066 Motherboard
P49G features Intel® G41 and ICH7 chipsets. It has a really small form factor of 255x170 mm with high transfer rate of FSB1333, dual channel DDR3 1066 with 4GB memory support. Also is compatible with the latest Intel 45nm, dual-core processors. P49G is a sure product to access the greatest enjoyment.
FSB 1333
Supports the latest 1333MHz front side bus Intel®Processor
PCI Express
Delivers up to a 4x increase in graphics and 2x I/O bandwidth for smooth multimedia performance.
10/100 LAN
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card
Serial-ATA II
Support N-ports SATAII running at 300MB/s at 2x double speed than SATA. Fully compatible with soon-to-be-released SATA HDD, CD-ROM and other cutting edge devices with NCQ function support.
USB 2.0
USB 2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers
6-Channel Audio
Onboard 6-channel audio CODEC supports uncompromising DVD audio quality, bringing a more vivid sound experience and high-quality 6-channel audio without having to buy advanced sound cards
Color Map
Color-coded pin headers and slots make it easy to match plug that plugs with cables without checking the silk screen for installation instructions
ATA100
Supports Ultra DMA 33/66/100 IDE devices, data transfer rate up to 100MB/s
