Performance
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
Intel |
| Audio system |
VIA VT170 |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1066, 1333 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
Graphics
| On-board graphics adapter |
N |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Internal I/O
| Number of SATA II connectors |
4 |
| Peripheral (Molex) power connectors (4-pin) |
2 |
| Number of COM connectors |
1 |
Back panel I/O ports
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Networking
| Networking features |
10/100 |
Additionally
| Chipset |
Intel H61 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

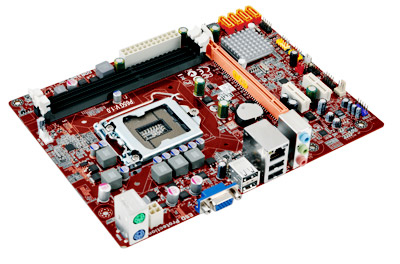

P65G - Intel H61, LGA1155, PCI E x16, Fast Ethernet, 4 x S-ATAII 3.0Gb/s, Micro ATX
PCCHIPS Motherboard P65G supports the latest socket LGA 1155 Intel® 2nd Generation Core™ i7 / i5 / i3 Processors. It features Intel H61 Express chipset with 2 DDR3 up to 16GB and SATA 3Gb/s & multi-language BIOS. PCCHIPS P65G is absolutely the best choice for Micro-ATX Motherboard.
Supports latest Intel LGA 1155 CPU-socket interface processor which is built on 32 nm technologies to provide smart performance and responsiveness on executing tasks, It combines the CPU and GPU to offer fantastic HD media and graphics, especially on 3D gaming experience.
Intel® Extreme Tuning Utility is the ideal way to monitor and boost the performance of your of Intel® technology-based PC. Automatic performance tuning reduces the overclocking effort for everyone, while expert users retain the option to personalize their system configuration. *ONLY Support With Windows 7
Doubles the bandwidth of your system memory up to 21.0GB/s and pumps up the system performance at lower power.
USB 2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers
Support N-ports SATAII running at 300MB/s at 2x double speed than SATA. Fully compatible with soon-to-be-released SATA HDD, CD-ROM and other cutting edge devices with NCQ function support.
Multi-language BIOS allows you to see and set up the BIOS with your native language. It helps Non-English users to solve the problem of setting up the BIOS and achieve extra system performance easily.
Windows® 7 platform introduces a number of manageability improvements that can reduce total cost of ownership by helping to increase automation, improve user productivity, and provide flexible administrative control to meet compliance requirements. It is more user-friendly and has been optimized to consume less system resources with Windows® 7 as well. Furthermore, the VT technology is enhanced to support real-time multimedia application including video playback and 3D games.
The exceptionally increased interconnect bit rate from 2.5GT/s up to 5.0GT/s would effectively eliminates the bottle neck of the system performance and brings the most terrific computing experience from the present to the future
Integrated 6-channel High Definition Audio CODEC delivering advanced multi-channel audio and bringing you the experience of home theater-quality sound.
Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card
