Performance
| Motherboard form factor |
ATX |
| Audio system |
C-Media CMI9761A |
Memory
| Supported memory clock speeds |
266, 333 MHz |
| Memory voltage |
2.5 V |
| Number of memory slots |
4 |
| Maximum internal memory |
4 GB |
BIOS
| BIOS memory size |
2 MB |
| ACPI version |
1.0 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
2 |
| Number of Parallel ATA connectors |
2 |
| Power fan connector |
Y |
| Floppy disk drive connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
| CNR slot |
Y |
Graphics
| On-board graphics adapter |
N |
Expansion slots
| PCI slots |
5 |
| AGP x8 slots |
1 |
Networking
| Networking features |
Fast Ethernet |
Packaging content
| Quick installation guide |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

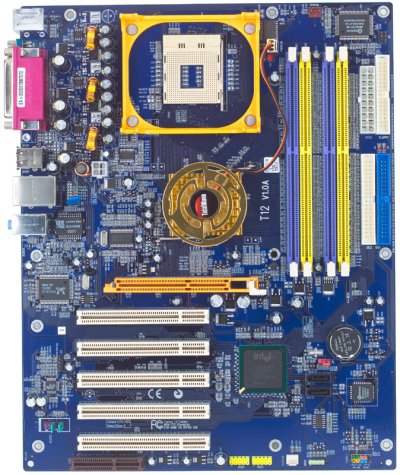

T12 (V1.0a), socket 478, 865PE/ICH5, ATX, DDR, AGP8X/PCI, 4x184-pin DIMM, 2xUltraDMA, Fast Ethernet
T12 (V1.0a)
T12 is one of the TidalWave series and unique modules of PC CHIPS production.
It can also support the latest Intel Pentium 4 Hyper-Threading CPU, up to 800MHz FSB, Dual-Channel DDR400, 8 USB2.0 ports and 2 Serial ATA for future technology. With S3, Microsoft WHQL Certification, all these advance supports, we believe your computer can run with best performance and bring you the great value and enjoyment.
FSB 800 (P4)
Supports the 800MHz front side bus Intel processors.
Dual DDR-400
Dual-channel DDR 400 doubles the bandwidth of your system memory up to 6.4GB/s and pumps up the system performance.
AGP-8X
AGP8X / AGP 3.0 enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s, twice faster than AGP4X.
Gigabit LAN
Gigabit LAN delivers transfer speeds ten times faster than conventional 10/100 Ethernet connections, supporting a high transfer rate up to 1 Gigabit/s. Gigabit LAN is the networking standards for the future and is ideal for handling large amount of data such as video, audio, and voice.
Serial-ATA
Serial ATA is the next generation ATA specification that provides superior performance. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.
USB 2.0
USB 2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
6-Channel Audio
Onboard 6-channel audio CODEC supports uncompromising DVD audio quality, bringing a more vivid sound experience and high-quality 6-channel audio without having to buy advanced sound cards.
Color Map
Color-coded pin headers and slots make it easy to match plug that plugs with cables without checking the silk screen for installation instructions.
Over-Clocking
- Maximizes your system performance by selecting from these overclocking options;
- Flexible CPU/DDR core voltage adjustments Adjustable FSB/DDR ratio.
