Ergonomics
| Stand-by LED |
Y |
| Power LED |
Y |
| On Screen Display (OSD) |
Y |
Ports & interfaces
| Composite video in |
1 |
| DVI port |
Y |
| USB hub version |
USB 2.0 |
| USB Type-A downstream ports quantity |
1 |
| Component video (YPbPr/YCbCr) in |
1 |
| VGA (D-Sub) ports quantity |
1 |
Display
| HD type |
Full HD |
| Native aspect ratio |
16:10 |
Additionally
| S-Video in |
1 |
| Energy efficiency compliance |
Unspecified |

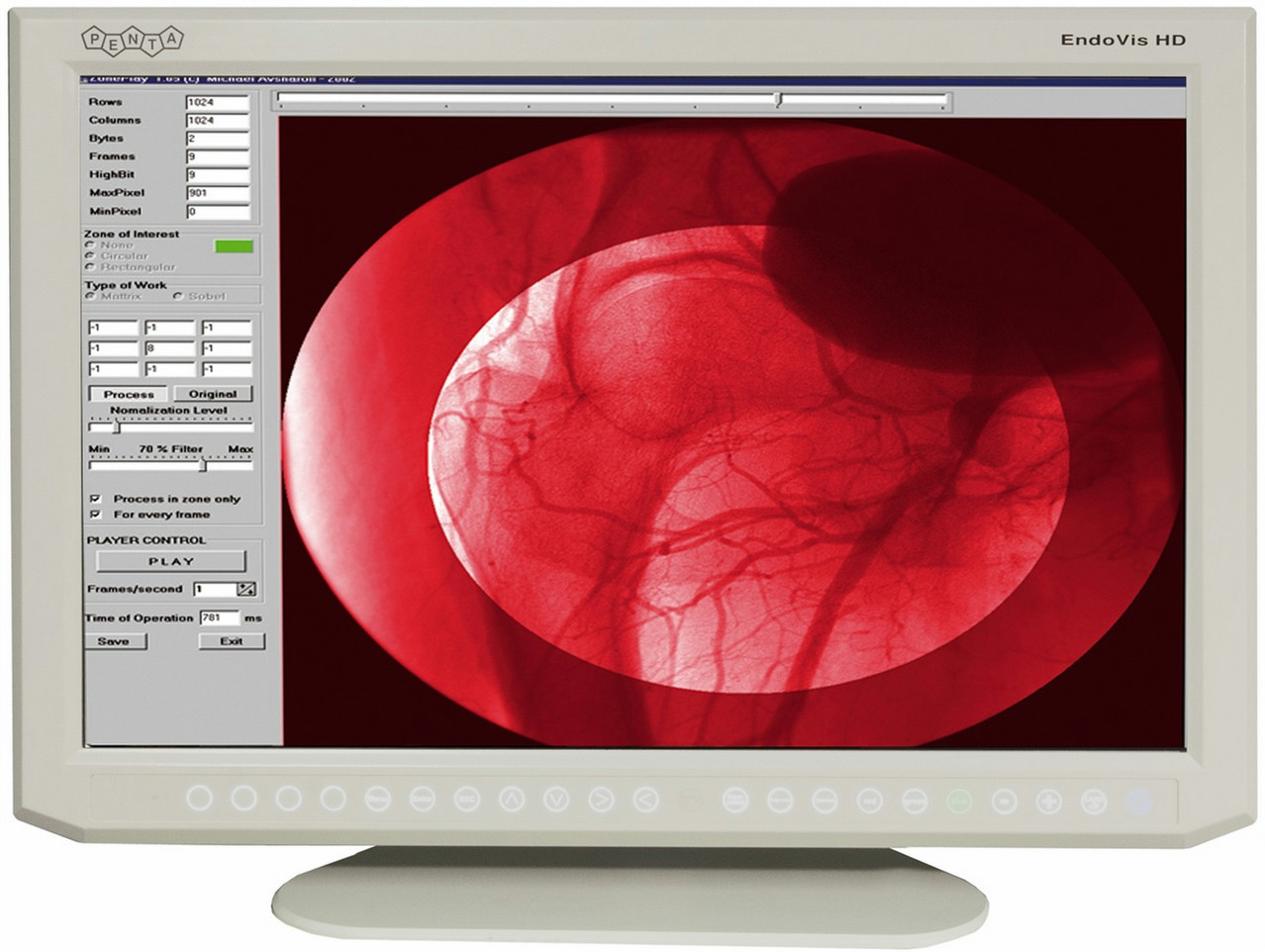

60.96 cm (24 ") LCD 1920 x 1200 px, 16:10, 400 cd/m2, 1000:1, 6 ms, PAL, NTSC, DVI, D-Sub, 10500 g, White
- Medical Monitor that not only matches the high requirements of Endoscopic-Surgery but exceeds them by far.
- Full-HD resolution (up to 1080p) as well as in digital and analog area.
- Active-TFT Display with 1920 x 1200 Pixel resolution, fast response time, high contrast and brightness with high viewing angle.
- Durable and error-free even under critical environmental conditions.
- Easy and intuitive handling with the integrated PENTA controlpanel.
- Easy choice oft he wanted videosignals by directkeys (Illuminated).
- Various input-devices are connectable, integrated USB2.0-HUB.
- Ports : DVI, VGA, S-Video, component Video, RGB-S/YPbPr and USB, Option: SDI.
- Picture in Picture and Picture by Picture.
- Color depth of 10 Bit, up to 1024 greyscales.
- All Video-Inputs via high quality BNC-connectors. An accidentally dismantling of the connection cables is avoided and the safety is increased.
- All Video-inputsignals are also provided as output signals via a Loop-Through-circuit.
- The Monitor supports DICOM Preset and is able to save 10 different settings for all inputs. Every different input can be activated accordingto the needs of the particular user.
- Medical suited mounting- and fastening concept with VESA 100 / VESA 200 Norm.
- Displaysize 24".
