Management features
| Multicast support |
Y |
| MIB support |
Y |
| System event log |
Y |
| Web-based management |
Y |
| Traffic classification |
Y |
| Traffic shaping |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Number of VLANs |
4000 |
Operational conditions
| Heat dissipation |
11.6 BTU/h |
| Operating altitude |
0 - 3048 m |
Optical fiber
| Fiber type |
Single-mode |
| Transmission distance (max) |
10 km |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Spanning tree protocol |
Y |
| Auto-sensing |
Y |
| MAC address auto-learning supported |
Y |
| Flow control support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| 10G support |
N |
| Full duplex |
N |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Fiber ports quantity |
1 |
| Console port |
RJ-45 |
Power
| Power consumption (max) |
3.4 W |
Packaging data
| Wall mounting kit |
Y |
| User guide |
Y |
Design
| Wall mountable |
Y |
| Rack mounting |
N |
Security
| BPDU filtering/protection |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
4 x 10/100/1000Base-T RJ-45, 1 x 1000Base-BX, 1310nm TX /1490nm RX, single mode, SC, -40 to 75C

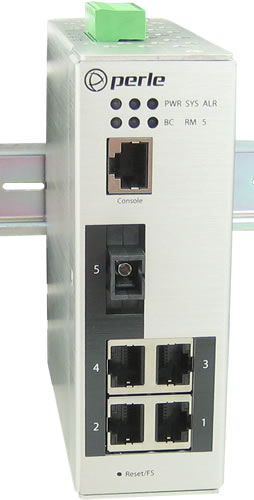

The IDS-205G is a 5 port Managed Ethernet Switch that can operate in industrial environments providing advanced performance and enabling real-time deterministic network operation. Four 10/100/1000-Base-T Ethernet ports are available for networking Gigabit and Fast Ethernet devices. One 1000Base-X fiber connection is available to extend Gigabit Ethernet operating distances over fiber.
In industrial plants, where high levels of electromagnetic interference ( EMI ) is a common phenomenon, utilizing fiber is critical. EMI can cause data corruption over copper-based Ethernet links. However, data transmitted over fiber optic cable is completely immune to this type of noise ensuring optimal data transmission across the plant floor.
Perle Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications.
With over 30 models, the Perle IDS-205G offers a choice of connectors, fiber types, temperature support and operating distances.
The simple Plug and Play installation available in Perle’s Fast Setup feature gets your Ethernet devices networked immediately. CCNA ( Cisco Certified Network Associate ) and CCNP ( Cisco Certified Network Professional ) trained engineers will appreciate the familiar Command Line Interface ( CLI ) via in-band Telnet or the out-band serial console port.
An IPv6 address can be used to manage the IDS-205G which also supports a comprehensive set of management functions, such as P-Ring, management VLAN, QoS, RMON, N:1 port mirroring and local alert log.
These rugged fan-less switches that are hardened to provide superior reliability in -10 to 60°C. In addition, every component on every industrial (XT) model has been designed and tested to handle operating temperatures between -40 and 75C.
All Perle Industrial Ethernet Switches only use high-end components from the leading chip manufacturers to ensure the highest level of durability and reliability. In addition, all units have a corrosion resistance aluminum case and dual redundant power input with reverse polarity and overload protection.
For over 35 years Perle has been designing industrial hardware. This expertise was used to design the toughest Ethernet switches on the market that will keep your system running for years to come.
