Management features
| Multicast support |
Y |
| MIB support |
Y |
| System event log |
Y |
| Traffic classification |
Y |
| Traffic shaping |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Number of VLANs |
4000 |
Operational conditions
| Heat dissipation |
11.6 BTU/h |
| Operating altitude |
0 - 3048 m |
Optical fiber
| Fiber type |
Single-mode |
| Transmission distance (max) |
10 km |
| Wavelength |
1310 nm |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Full duplex |
Y |
| Spanning tree protocol |
Y |
| MAC address auto-learning supported |
Y |
| Flow control support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Auto-sensing |
Y |
| 10G support |
N |
Ports & interfaces
| Console port |
RJ-45 |
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Fiber ports quantity |
1 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Security
| BPDU filtering/protection |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Power
| Power consumption (max) |
3.4 W |
Packaging data
| Wall mounting kit |
Y |
| User guide |
Y |
Design
| Rack mounting |
N |
| Wall mountable |
Y |

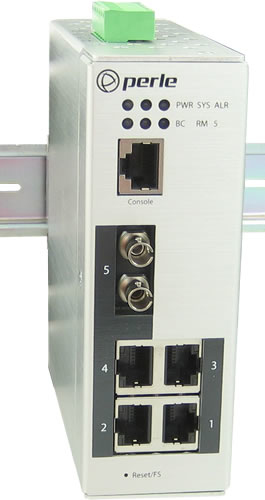

4 x 10/100/1000Base-T RJ-45, 1 x 1000Base-LX/LH, 1310nm single mode, duplex ST, -10 to 60C
The IDS-305G is a 5 port Managed Ethernet Switch that can operate in industrial environments providing advanced performance and enabling real-time deterministic network operation. Four 10/100/1000-Base-T Ethernet ports are available for networking Gigabit and Fast Ethernet devices. One 1000Base-X fiber connection is available to extend Gigabit Ethernet operating distances over fiber.
In addition to extending links over greater distances, utilizing fiber is critical in environments where high levels of electromagnetic interference ( EMI ) is a common phenomenon, like industrial plants. This interference can cause data corruption over copper-based Ethernet links. However, data transmitted over fiber optic cable is completely immune to this type of noise ensuring optimal data transmission across the plant floor.
Perle Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications.
With over 30 models, the Perle IDS-305G offers a choice of connectors, fiber types, temperature support and operating distances.
Perle’s Fast Setup feature provides simple Plug and Play installation to get your Ethernet devices networked immediately. The familiar Command Line Interface ( CLI ), via in-band Telnet or the out-band serial console port, will be appreciated by CCNA ( Cisco Certified Network Associate ) and CCNP ( Cisco Certified Network Professional ) trained engineers.
P-Ring, management VLAN, QoS, RMON, N:1 port mirroring and local alert log, are only a few of the comprehensive management functions supported in the IDS-409. In addition, the switch can be managed with an IPv6 address.
The IDS-305G, which comes in a variety of models, are rugged fan-less switches that are hardened to provide superior reliability in -10 to 60°C, or harsh extended operating temperatures from -40 to 75°C. Every component on every industrial (XT) model has been designed and tested to handle operating temperatures between -40 and 75C.
All Perle Industrial Ethernet Switches have a corrosion resistance aluminum case and dual redundant power input with reverse polarity and overload protection. In addition, all units only use high-end components from the leading chip manufacturers to ensure the highest level of durability and reliability.
Perle has been designing industrial hardware for over 35 years. This expertise was used to design the toughest Ethernet switches on the market that will keep your system running for years to come.
