Performance
| Supported processor sockets |
Socket AM3+, Socket AM2+, Socket FM2, Socket AM2, Socket FM1, Socket AM3 |
| Fan thickness |
25 mm |
| Maximum airflow |
68.5 cfm |
| Minimum airflow |
23 cfm |
| Minimum air pressure |
0.39 mmH2O |
| Maximum air pressure |
2.07 mmH2O |
| Noise level (low speed) |
21.9 dB |
| Noise level (high speed) |
27.6 dB |
| Rotational speed (min) |
600 RPM |
| Rotational speed (max) |
1800 RPM |
| Type |
Cooler |
| Suitable for |
Processor |
| Number of fans |
2 fan(s) |
| Fan diameter |
120 mm |
Weight & dimensions
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Heatsink dimensions (W x D x H) |
57 x 162 x 157 mm |
Power
| Rated current |
0.18 A |
| Voltage |
12 V |
126x107x157mm, 2.16W, 1800 RPM

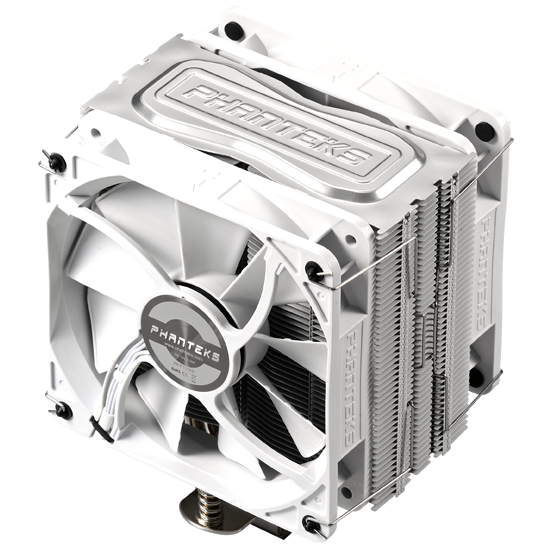

PH-TC12DX, a U-Type dual tower heat-sink with four 6mm heat-pipes allows for optimal airflow and cooling. PH-TC12DX’s 6mm heat-pipes are linearly aligned and developed to have the least amount of air and thermal resistance. Incorporating P.A.T.S and C.P.S.C Technologies, PH-TC12DX delivers better heat dissipation and heat transfers. PH-TC12DX includes dual PH-F120HP PWM Premium fans to allow for higher performance and/or silent operation.
Patented. P.A.T.S (Physical Antioxidant Thermal Shield) will greatly increase the cooling performance and reliability while deflecting other thermal radiation from other heat sources, such as the GPU, South Bridge, North Bridge, etc. P.A.T.S, ran at a long period, will display significantly better results in an enclosure, closed environment, than a tech station, open environment. In extreme conditions, PATS is able to withstand temperatures of up to 200 degrees Celsius. P.A.T.S is environmental friendly and non-toxic.
Patented. C.P.S.C (Cold Plasma Spraying Coating Technology) is a brand new technologic forming deposit that displaces heat onto corresponding metals at a quicker rate. With this technology, the Phanteks PH-TC12DX enhances thermal conductivity on the soldered surfaces of the heat-pipes through the copper deposits.
Phanteks PH-F120HP PWM Premium fans uses UFB (Updraft Floating Balance) bearing, Nine blades and MAFO (Maelstrom Air-Fort Optimization) drive system to achieve massive airflow and perfect dynamic balance. The PH-F120HP fans with the support of the anti-acoustic rubber pad and rubber bar produces low level dB(A) and eliminates vibration. With PWM functions built in, PH-F120HP fans allows you to set speed adjustments for either performance and/or silent operation.
SoliSku universal mounting kit provides broad socket compatibilities for Intel LGA 2011/1150/1155/1156/1366/775 and AMD FM2/FM1/AM3+/AM3/AM2+/AM2 (Stock back-plate required).
Phanteks PH-NDC is made of high purity Nano diamond-like particles to improve the thermal conductance between components. The PH-NDC is a superb quality thermal compound for heat-sinks. Heat generated by CPUs will transfer to the heat-sinks without reduction in efficiency and resistance.
