Ports & interfaces
| Composite video out |
1 |
| Microphone in |
Y |
| Component video (YPbPr/YCbCr) out |
1 |
| Audio (L,R) out |
1 |
| Digital audio coaxial out |
1 |
Security
| Child lock |
Y |
| Parental control |
Y |
Technical details
| CD-RW playback |
Y |
| CD-R playback |
Y |
| Karaoke |
Y |
| Slide show |
Y |
| Form factor |
Set-top |
Management features
| Handheld remote control |
Y |
File formats
| Image formats supported |
JPG |
Video
| Video upscaling |
N |
| Progressive scan output |
Y |
| Video D/A Converter (DAC) |
12-bit/108MHz |
Audio
| WMA bit rates |
32 - 192 Kbit/s |
| Crosstalk (1kHz) |
100 dB |
| Dynamic range (1kHz) |
90 dB |
| Distortion and noise (1kHz) |
85 dB |
| Audio D/A Converter (DAC) |
24-bit/192kHz |
| Signal-to-Noise Ratio (SNR) |
100 dB |
| MP3 bit rates |
8 - 320 Kbit/s |
| Frequency range |
30 - 20000 Hz |
Storage
| Recording disc types |
Not supported |
| Playback disc formats |
CD audio, CD video, SVCD, VCD |
| Playback disc types |
CD-RW, DVD+RW, CD-ROM, CD, DVD+R, DVD, DVD-R, CD-R, DVD-RW, DVD-ROM |
| Card reader integrated |
N |

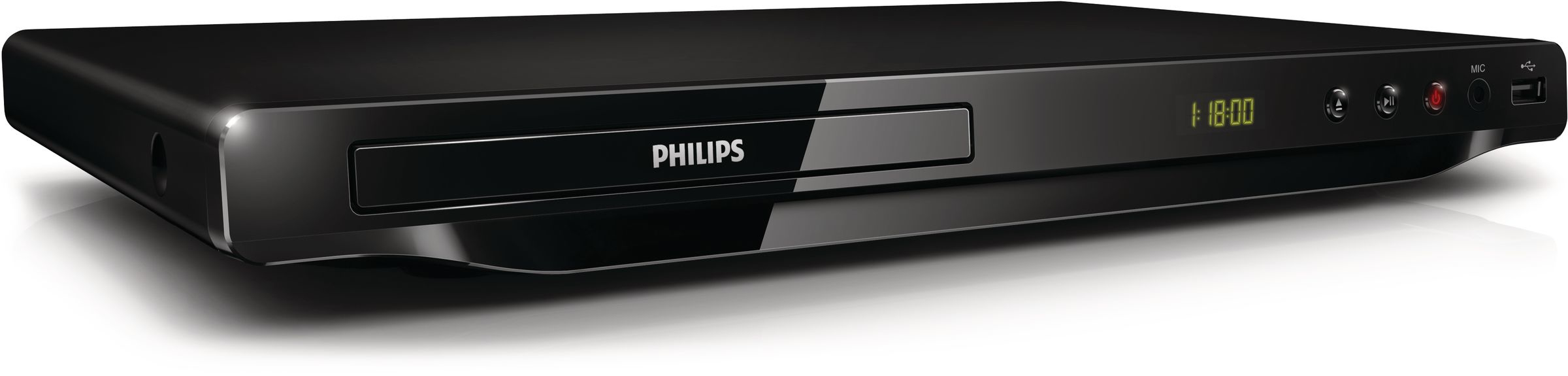

DVP3650K/98 - 12 bit, 108 MHz, DVD, DivX, NTSC, PAL, Dolby Digital, Karaoke
<b>Bring audio and video to life</b>
- Progressive Scan component video for optimized image quality
- 12-bit/108MHz video processing for sharp and natural images
- 192kHz/24 bit audio DAC enhances analogue sound input
<b>Play all your movies and music</b>
- DivX Ultra Certified for enhanced DivX video playback
- Play CD, (S)VCD, DVD, DVD+- R/RW, DivX, MP3, WMA, JPEG
- ProReader Drive for smooth playback on virtually any disc
- USB Media Link for media playback from USB flash drives
<b>Easy to use</b>
- One-touch MP3 creation directly from CDs onto USB sticks
<b>Enjoy enhanced karaoke</b>
- Karaoke Idol for interactive excitement and great fun
- Karaoke Record for sharing your singing talent with friends
<b>DivX Ultra Certified for enhanced DivX video playback</b>
With DivX support, you are able to enjoy DivX encoded videos and movies from the Internet, including purchased Hollywood films, in the comfort of your living room. The DivX media format is an MPEG-4 based video compression technology that enables you to save large files like movies, trailers and music videos on media like CD-R/RW and DVD recordable disc for playback on your DivX Ultra Certified Philips Blu-ray or DVD player. DivX Ultra combines DivX playback with great features like integrated subtitles, multiple audio languages, multiple tracks and menus into one convenient file format.
<b>ProReader Drive for smooth playback on virtually any disc</b>
ProReader Drive lets you enjoy your movies and videos worry-free. Even when old discs get smudgy or scratched, you can rest assured that they will play right through from start to end - without any sign that they have been damaged. Using state-of-the-art technology, ProReader Drive converts weak analog signals into robust digital ones, extracting information that allows less-than-perfect discs to play smoothly through. Together with its ability to read virtually any video format, ProReader Drive gives you the unbeatable assurance that whatever you pop in will most definitely play.
<b>One-touch MP3 creation directly from CDs onto USB sticks</b>
Convert the contents of your favorite CDs to MP3 files on your Philips product, and store it directly on a thumbdrive or on your portable media player through a USB cable. Enjoy the convenience of creating MP3 files right in your living room, without a PC, and even while the CD is playing.
<b>USB Media Link for media playback from USB flash drives</b>
The Universal Serial Bus or USB is a protocol standard that is conveniently used to link PCs, peripherals and consumer electronic equipment. With USB Media Link, all you have to do is plug in your USB device, select the movie, music or photo and play away.
<b>Progressive Scan component video for optimized image quality</b>
Progressive Scan doubles the vertical resolution of the image resulting in a noticeably sharper picture. Instead of sending a field comprising the odd lines to the screen first, followed by the field with the even lines, both fields are written at one time. A full image is created instantaneously, using the maximum resolution. At such a speed, your eye perceives a sharper picture with no line structure.
<b>12-bit/108MHz video processing for sharp and natural images</b>
12-bit Video DAC is a superior Digital-to-Analogue-Converter that preserves every detail of the authentic picture quality. It shows subtle shades and smoother graduation of colors, resulting in a more vibrant and natural picture. The limitation of the usual 10bit DAC become in particular apparent while using large screens and projectors.
<b>192kHz/24 bit audio DAC enhances analogue sound input</b>
192KHz sampling enables you to have an accurate representation of the original sound curves. Together with a 24-bit resolution, more information is captured from the original analogue sound wave form, giving a much richer audio reproduction.
<b>Play CD, (S)VCD, DVD, DVD+- R/RW, DivX, MP3, WMA, JPEG</b>
<b>Karaoke Idol for interactive excitement and great fun</b>
Add more fun and excitement to your karaoke sessions. Karaoke Idol allows two or more singers to compete against each other for the crown. Singers take turns singing and the Philips karaoke scoring system analyzes how well each singer performs. After each performance, the system displays a humorous cartoon showing what it thought of the singer's ability as well as a score. The singer with the highest score at the end of the game wins the title of Karaoke Idol!
<b>Karaoke Record for sharing your singing talent with friends</b>
Karaoke Record is an advanced feature that records your singing performance and converts the file to MP3 format for playback on your portable media player. Simply plug your thumb drive or portable media player connected to a USB cable into the Philips DVD players USB port. Your singing will be encoded in a compressed format, resulting in a space-saving MP3 file. Enjoy your own singing while on-the-go or share with it your friends.
