Technical details
| Driver included |
Y |
| Full product name |
DN131B LED20S/840 PSED-E II ALU |
| 12NC Logistic code(s) |
910500457731 |
| Driver failure rate at 5000 h |
1.5% |
| Chromaticy |
(0.38, 0.37) SDCM <5 |
| Suitable for random switching |
Y |
| Product family code |
DN131B |
| Lamp family code |
LED20S |
| Ambient temperature (max) |
40 °C |
| Optical cover/lens type |
ACF |
| Driver/power unit/transformer |
PSED-E |
| Average ambient temperature |
25 °C |
| Mechanical impact protection code |
IK02 |
| Median useful life L90B50 |
15000 h |
| Median useful life L80B50 |
30000 h |
| Median useful life L70B50 |
50000 h |
| Quantity outer carton |
1 pc(s) |
| Ambient temperature (min) |
10 °C |
Lamps
| Included bulb(s) type |
LED |
| Luminous efficacy |
95 lm/W |
| Total power |
22 W |
| Included bulb power |
22 W |
| Color temperature |
4000 K |
| Beam angle |
120 ° |
| Color Rendering Index (CRI) |
80 |
| Number of bulbs |
1 |
| Bulb(s) included |
Y |
| Luminous flux |
2100 lm |
| Bulb type |
LED |
| Bulb lifetime |
15000 h |
Weight & dimensions
| Diameter |
216 mm |
| Weight |
800 g |
| Height |
113 mm |
Design
| Proper use |
Indoor |
| Certification |
F, CE |
| Protection class |
II |
| Product type |
Recessed lighting spot |
| International Protection (IP) code |
IP20 |
| Material |
Polycarbonate |
| Suitable for rooms |
Living room |
| Plafond shape |
Round |
Power
| Input voltage |
220-240 V |
| Input frequency |
50/60 Hz |
| Power source type |
AC |
Additionally
| Colour of product |
Aluminium |
| Light color |
Cool white |

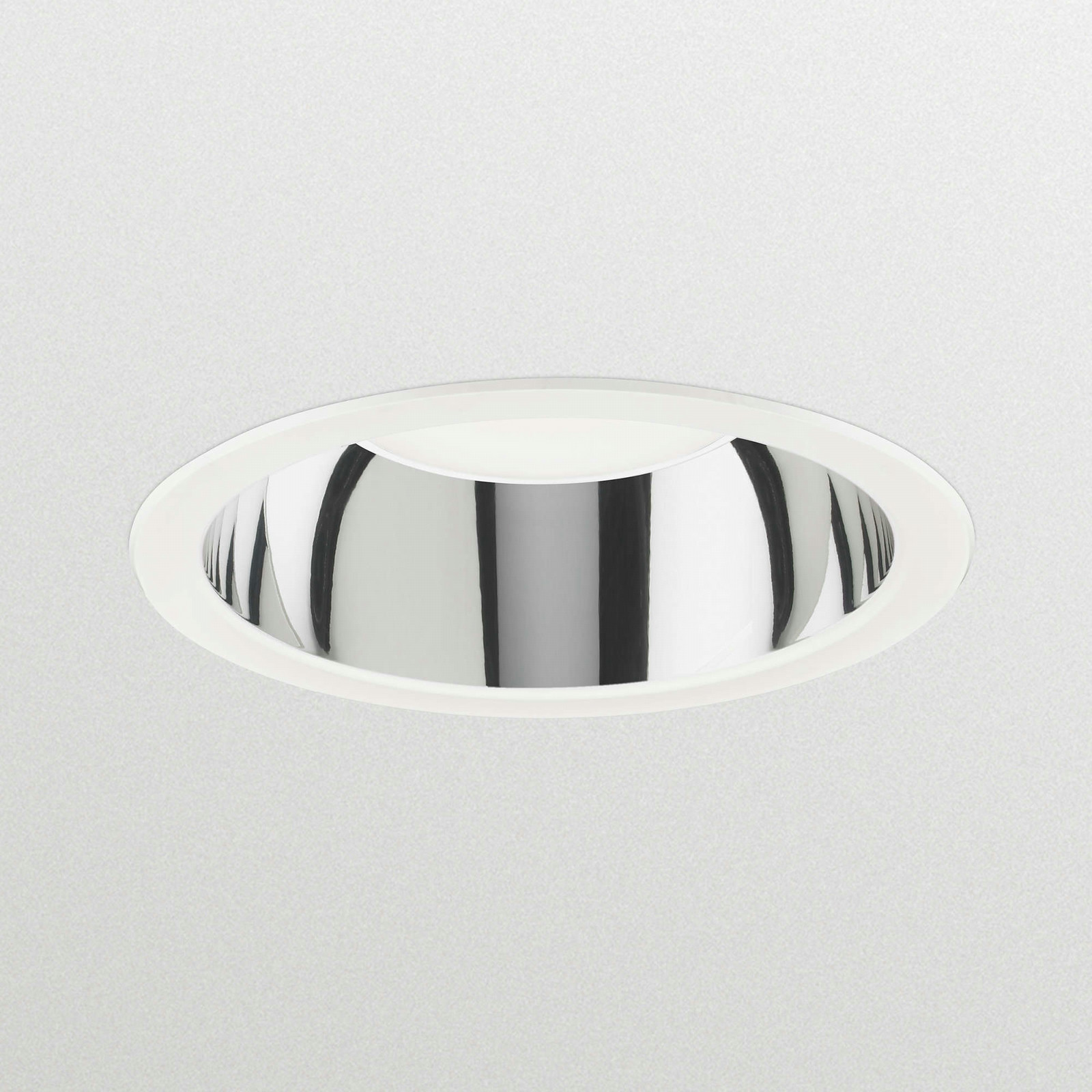

CoreLine, 220-240V, 50-60Hz, 22W, 4000K
The CoreLine Downlight range of recessed luminaires is designed to replace CFL-ni/CFL-i based downlight luminaires. Their attractive TCO helps customers to make the switch to LED.These luminaires create a natural lighting effect for use in general lighting applications. They also deliver instant energy savings and have a much longer lifetime, creating a real value-for-money and environmentally friendly solution. They are easy to install thanks to their standard cut-out size and push-in connectors.
