Networking
Networking standards |
IEEE 802.3, IEEE 802.3u |
Auto MDI/MDI-X |
Y |
10G support |
N |
Operational conditions
Operating relative humidity (H-H) |
5 - 95% |
Storage temperature (T-T) |
-20 - 70 °C |
Storage relative humidity (H-H) |
5 - 95% |
Weight & dimensions
Depth |
70 mm |
Weight |
277 g |
Width |
30 mm |
Height |
120 mm |
Management features
Quality of Service (QoS) support |
Y |
Switch layer |
L2 |
Switch type |
Unmanaged |
Power
AC input voltage |
20 - 28 V |
Input voltage |
24 V |
Output current |
0.114 A |
Design
DIN rail mounting |
Y |
LED indicators |
Y |
International Protection (IP) code |
IP20 |
Housing material |
Aluminium |
Certification |
RoHS\nIEC 61000-6.2\nIEC 61000-4-2\nIEC 61000-4-3\nIEC 61000-4-4\nIEC 61000-4-5\nIEC 61000-4-6\nEN 61000-6-2:2005\nEN 55022\nRoHS |
Rack mounting |
N |
Ports & interfaces
Fast Ethernet (copper) ports quantity |
5 |
Basic switching RJ-45 Ethernet ports quantity |
5 |
Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
Data transmission
MAC address table |
1024 entries |
Store-and-forward |
Y |
Additionally
Colour of product |
Black, Grey |
Operating temperature range (T-T) |
0 - 60 °C |

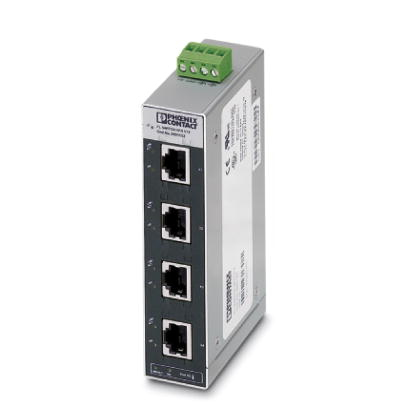

Industrial Ethernet Switch, 5 x Fast Ethernet RJ-45
Ethernet switch, 5 TP RJ45 ports, automatic detection of data transmission speed of 10 or 100 Mbps (RJ45), autocrossing function.
