Processor
| CPU multiplier (bus/core ratio) |
34 |
| Processor operating modes |
64-bit |
| Number of processors installed |
1 |
| Processor boost frequency |
3.8 GHz |
| Processor cache |
8 MB |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
95 W |
| Maximum number of PCI Express lanes |
1 |
| Processor codename |
Sandy Bridge |
| Memory clock speeds supported by processor |
1066, 1333 MHz |
| Memory channels supported by processor |
Dual |
| Conflict Free processor |
N |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Processor cache type |
Smart Cache |
| FSB Parity |
N |
| Stepping |
D2 |
| Processor cores |
4 |
| Processor frequency |
3.4 GHz |
| Maximum internal memory supported by processor |
32 GB |
| PCI Express slots version |
2.0 |
| Tcase |
72.6 °C |
| ECC supported by processor |
N |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
DMI |
Processor special features
| Intel® Turbo Boost Technology |
2.0 |
| Intel Enhanced Halt State |
Y |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
37.5 mm |
| Processor ARK ID |
52214 |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Identity Protection Technology version |
1.00 |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Supported instruction sets |
AVX |
Graphics
| On-board graphics adapter base frequency |
850 MHz |
| On-board graphics adapter |
Y |
| On-board graphics adapter ID |
0x112 |
| On-board graphics adapter family |
Intel HD Graphics |
| Discrete graphics memory type |
GDDR3 |
| Discrete graphics adapter model |
NVIDIA GeForce GTX 550 Ti |
| Discrete graphics adapter memory |
1500 GB |
| On-board graphics adapter dynamic frequency (max) |
1350 MHz |
| Number of displays supported (on-board graphics) |
2 |
Storage
| Hard drive speed |
5400 RPM |
| Hard drive size |
3.5 " |
| Total storage capacity |
2000 GB |
| Card reader integrated |
N |
| Hard drive interface |
Serial ATA III |
Memory
| Memory slots |
4x DIMM |
| Internal memory type |
DDR3-SDRAM |
| Memory clock speed |
1333 MHz |
| Maximum internal memory |
16 GB |
| Internal memory |
8 GB |
Performance
| Audio system |
HD |
| Motherboard form factor |
Micro ATX |
| Audio output channels |
7.1 channels |
Optical drive
| Optical drive type |
DVD Super Multi DL |
Other features
| Maximum number of SMP processors |
1 |
| Headphone connectivity |
3.5 mm |
| Graphics adapter family |
NVIDIA, Intel |
| Processor manufacturer |
Intel |
| Microphone connectivity |
3.5 mm |
| Platform |
PC |
| Networking features |
Gigabit Ethernet |
Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi |
N |
Packaging content
| Display included |
N |
| Drivers included |
Y |
Ports & interfaces
| DVI port |
Y |
| PS/2 ports quantity |
1 |
| Line-in |
Y |
| Line-out |
Y |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Software
| Operating system architecture |
64-bit |
Expansion slots
| PCI Express x1 slots |
2 |
| PCI Express x16 slots |
2 |
Additionally
| InTru™ 3D Technology |
Y |
| Chipset |
Intel H67 |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
5 GT/s |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

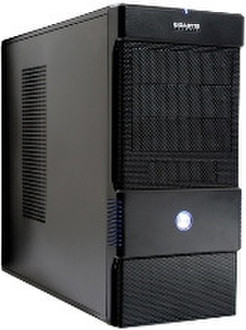

Phoenix Technologies Casia I7 TR4 AW. Processor frequency: 3.4 GHz, Processor family: 2nd gen Intel® Core™ i7, Processor model: i7-2600K. Internal memory: 8 GB, Internal memory type: DDR3-SDRAM, Maximum internal memory: 16 GB. Total storage capacity: 2000 GB, Hard drive interface: Serial ATA III, Hard drive speed: 5400 RPM. Optical drive type: DVD Super Multi DL. Discrete graphics adapter model: NVIDIA GeForce GTX 550 Ti, On-board graphics adapter model: Intel HD Graphics 3000, Discrete graphics memory type: GDDR3
