Processor special features
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
Y |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
37.5 mm |
| Processor ARK ID |
42801 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Networking
| Wi-Fi |
N |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Processor
| Tcase |
74.1 °C |
| ECC supported by processor |
N |
| Number of processors installed |
1 |
| Processor cache |
2 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
65 W |
| Processor codename |
Wolfdale |
| Conflict Free processor |
N |
| Processor cache type |
Smart Cache |
| FSB Parity |
N |
| Processor front side bus |
800 MHz |
| Number of Processing Die Transistors |
228 M |
| CPU multiplier (bus/core ratio) |
15 |
| Processor operating modes |
64-bit |
| Stepping |
R0 |
| Processor cores |
2 |
| Processor frequency |
3 GHz |
| Bus type |
FSB |
Storage
| Number of hard drives installed |
1 |
| Hard drive size |
3.5 " |
| Hard drive capacity |
500 GB |
| Hard drive speed |
7200 RPM |
| Total storage capacity |
500 GB |
| Card reader integrated |
N |
| Hard drive interface |
Serial ATA II |
Memory
| Internal memory type |
DDR3-SDRAM |
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
1 x 2 GB |
| Memory slots |
2x DIMM |
| Maximum internal memory |
8 GB |
| Internal memory |
2 GB |
Performance
| Motherboard form factor |
Micro ATX |
| Motherboard southbridge |
Intel ICH7 |
| Audio output channels |
7.1 channels |
| Audio system |
Realtek ALC889 |
Ports & interfaces
| DVI port |
Y |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
Graphics
| On-board graphics adapter |
Y |
Expansion slots
| PCI slots |
1 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
2 |
Other features
| Ethernet interface type |
Gigabit Ethernet |
| Processor manufacturer |
Intel |
| Platform |
PC |
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Networking features |
Gigabit Ethernet |
Optical drive
| Optical drive type |
DVD Super Multi DL |
Additionally
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| InTru™ 3D Technology |
N |
| Chipset |
Intel G41 |
| Processing die size |
82 mm² |
| Ethernet LAN (RJ-45) ports quantity |
1 |

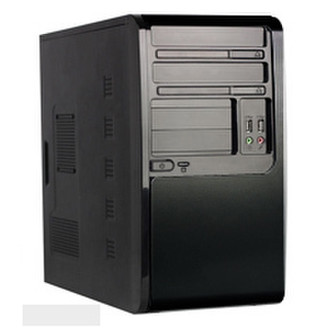

Phoenix Technologies TOPVALUE2-412. Processor frequency: 3 GHz, Processor family: Intel® Pentium®, Processor model: E5700. Internal memory: 2 GB, Internal memory type: DDR3-SDRAM, Maximum internal memory: 8 GB. Total storage capacity: 500 GB, Hard drive capacity: 500 GB, Hard drive interface: Serial ATA II. Optical drive type: DVD Super Multi DL. Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X)
