Ports & interfaces
| S/PDIF in port |
Y |
| Host interface |
PCI |
| MIDI/Joystick port |
Y |
| Line-out |
Y |
| Line-in |
Y |
| S/PDIF out port |
Y |
Audio
| Audio quality |
24 bit |
| Audio system maximum sampling rate |
192 kHz |
| Audio A/D Converter (ADC) |
24-bit/192kHz |
| Line-out Signal-to-Noise Ratio (SNR) |
-113 dB |
| Internal |
Y |
| Frequency range |
20 - 20000 Hz |
System requirements
| Minimum processor |
Pentium 3 – 500 MHz, Mac G4 733 MHz |
Technical details
| Channels quantity |
16 channels |
| Total Harmonic Distortion (THD) |
0.0006% |

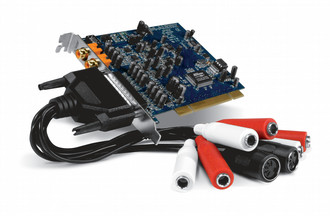

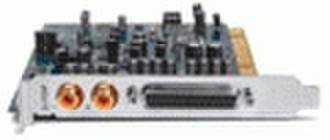

Audiophile 192, High-Definition 4-In/4-Out Audio Card with Digital I/O and MIDI
The Audiophile 192 continues the legacy of M-Audio’s industry-standard Delta audio card line. Building on our Audiophile 2496—one of the world’s most popular audio cards—the Audiophile 192 features high-definition 192kHz sampling rate, digital I/O, balanced analog I/O and an amazing signal-to-noise ratio. The Audiophile 192 represents a new benchmark in audio performance that’s as good as it gets for music production, mastering and critical listening. As with all Delta cards, you get rock-solid drivers and seamless integration with your favorite Mac and PC applications—and even the ability to combine multiple Delta cards in one system*. And since M-Audio is always ahead of the pack, this world-class card is also compliant with PCI 2.2 and 64-bit audio drivers so you’re ready to take advantage of next-generation platforms and software. The Audiophile 192 is the new world-class standard in stereo audio cards.
Features:
-Up to 24-bit/192kHz audio.
-2 balanced analog inputs (1/4” TRS).
-2 balanced analog outputs (1/4” TRS).
-S/PDIF digital I/O (coaxial RCA connectors) with 2-channel PCM.
-SCMS copy protection control.
-Digital I/O supports surround-encoded AC-3 and DTS pass-through.
-Direct hardware input monitoring via separate balanced 1/4” TRS monitor outputs.
-Software routing of inputs and outputs.
-Digital I/O can be routed to/from external effects.
-16-channel MIDI I/O.
-ASIO, WDM, GSIF 2 and Core Audio driver support for compatibility with most applications.
-64-bit driver support for Windows.
-PCI 2.2 compatibility.
-Apple G5 compatible - Incompatible exceptions.
-Includes Ableton Live Lite music production software, so you can make music right away.
-Works with other Delta cards.
