Ports & interfaces
| S/PDIF in port |
Y |
| MIDI/Joystick port |
Y |
| Line-out |
Y |
| Host interface |
PCI |
| Line-in |
Y |
| Microphone in |
Y |
| S/PDIF out port |
Y |
Audio
| Line-out Signal-to-Noise Ratio (SNR) |
101.5 dB |
| Internal |
Y |
| Frequency range |
22 - 40000 Hz |
System requirements
| Minimum processor |
Pentium II 400, G3/G4 |
Technical details
| Total Harmonic Distortion (THD) |
0.002% |

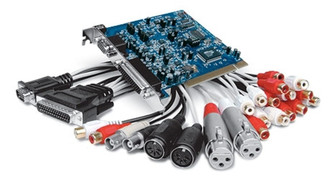

Delta 1010LT, 10-In/10-Out PCI Virtual Studio
The Delta 1010LT delivers much of the same universal connectivity, high fidelity and seamless performance as the popular Delta 1010 on a single PCI card—and at a fraction of the price. Multiple analog I/O, MIDI, S/PDIF and surround sound support are all here. Two inputs even have mic/line preamps on XLR connectors, saving the expense of outboard preamps. It’s all on a compact, half-size PCI card with two color-coded breakout cables. Combine up to four Deltas in your system for a maximum of 32 analog and four stereo S/PDIF inputs and outputs.
36-bit Embedded DSP
All Delta cards contain a 36-bit embedded DSP enabling a software-driven patchbay/router for all analog and digital I/O—all with extremely fast throughput for low-latency software monitoring. A single unified control panel provides settings for clock and sample rates, buffer sizes, individual signal levels for every input and output, adjustable +4dBu/-10dBV pad conrols and digital I/O control on up to four installed Delta cards. All controls are also easily accessible through most professional audio software applications for seamless integration and operation.
Features:
-8 x 8 analog I/O.
-2 mic preamps or line inputs.
-S/PDIF digital I/O (coaxial) with 2-channel PCM.
-SCMS copy protection control.
-Digital I/O supports surround-encoded AC-3 and DTS pass-through.
-1 x 1 MIDI I/O.
-Directly drive up to 7.1 surround (bass management software included).
-Software controlled 36-bit internal DSP digital mixing/routing.
- +4dbu/-10dBV operation individually switched in software.
-Word clock I/O for sample accurate device synchronization.
-Apple G5 compatible.
-Includes Maximum Audio Tools software bundle.
