Satellite speakers
| Number of satellite speakers |
2 |
| Satellite speaker woofer diameter (imperial) |
3.5 " |
| Satellite speaker tweeter diameter |
0.75 " |
| Satellite speakers RMS power |
80 W |
| Satellite speaker frequency range |
65 - 20000 Hz |
| Wireless satellite speakers |
Y |
Audio
| Audio D/A Converter (DAC) |
24-bit / 192kHz |
| Audio decoders |
DSD, DTS 5.1, DTS Neo:6, DTS-HD Master Audio, Dolby Digital, Dolby Digital Plus, Dolby Pro Logic II, Dolby TrueHD |
| Audio formats supported |
3G2, 3GP, AAC, AIFF, ALAC, DSD, FLAC, M4A, MP3, MP4, WAV, WMA |
| Audio Return Channel (ARC) |
Y |
Packaging content
| Manual |
Y |
| Batteries included |
Y |
| Warranty card |
Y |
Radio
| Radio Data System (RDS) |
Y |
| Preset stations quantity |
40 |
| FM radio |
Y |
| Supported radio bands |
FM |
| FM band range |
87.5 - 108 MHz |
Optical drive
| Optical disc player type |
Not included |
| Disc types supported |
N |
Weight & dimensions
| Satellite speaker dimensions (WxDxH) |
125.5 x 145.5 x 220 mm |
| Satellite speaker weight |
1700 g |
| Main unit dimensions (WxDxH) |
445 x 290 x 65 mm |
| Main unit weight |
3200 g |
Ports & interfaces
| Digital audio optical in |
1 |
| Number of HDMI outputs |
1 |
| USB 2.0 ports quantity |
1 |
| HDMI in |
4 |
Networking
| AirPlay |
Y |
| Wi-Fi |
Y |
| Bluetooth |
Y |
Technical details
| Bluetooth version |
4.1 LE |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| USB direct playback |
Y |
| USB required |
Y |
| Impedance |
8 Ω |
| On Screen Display (OSD) |
Y |
| Smartphone remote support |
Y |
Power
| Power consumption (typical) |
25 W |
| Power consumption (standby) |
0.5 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100-240 V |
| Auto power off |
Y |
Video
| Video upscaling |
Y |
| Full HD |
Y |
| Video formats supported |
MP4 |
Management features
| Handheld remote control |
Y |
| Sleep timer |
Y |
Additionally
| Colour of product |
White |
| Wireless connections |
Y |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

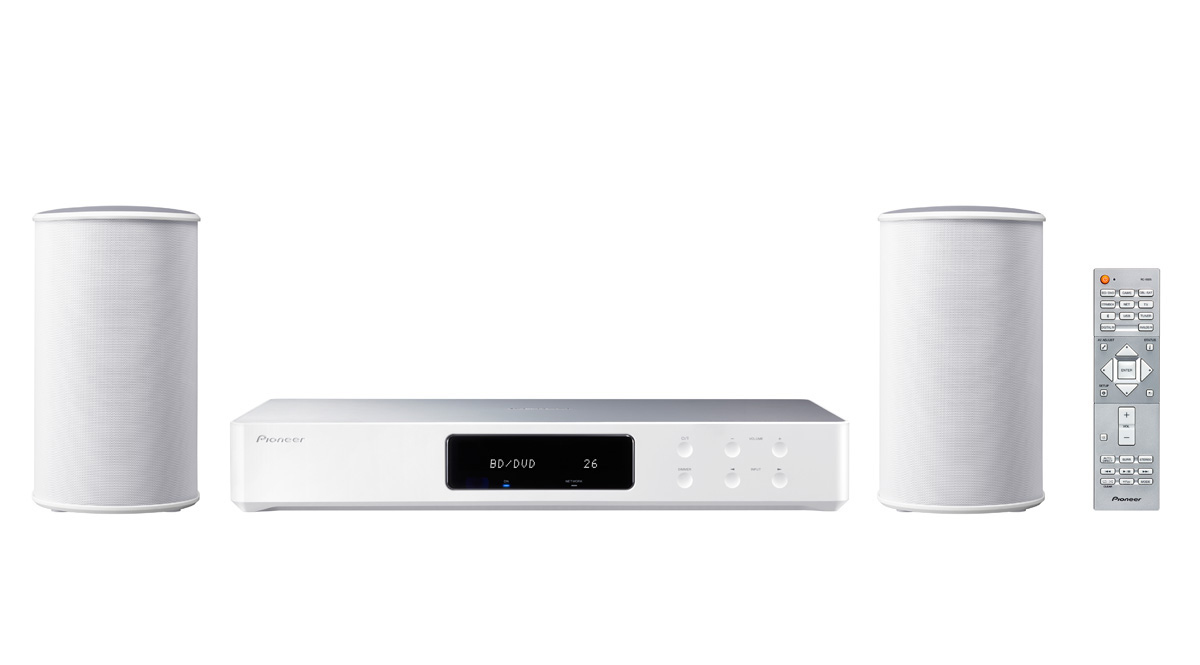

FS-W40 - ARC, HDMI, Wi-Fi, Bluetooth, FM/RDS, LAN, USB
With the FS-W40, you bring high-end music and movie sound rendering to your living room along with a sophisticated design. The slim receiver with aluminium cover plate and the two wireless speakers permit countless setup versions: a speaker can be installed wherever a power cord reaches. With the additional FS-S40 speakers and the FS-SW40 subwoofers that are available separately, you can gradually expand the system for full-fledged wireless surround sound. Nothing extra is required for your music either: with its integrated high-performance dual-band WiFi, the FS-W40 receiver offers straightforward access to all relevant streaming services, music collections on local hard drives and a whole universe of Internet radio stations. Thanks to Bluetooth, AirPlay and Chromecast built-in, any tablet or smartphone and every music app running on them is guaranteed an optimum connection to the system. Access to all your music was never simpler than with the FS-W40: no matter where or how you find and manage your music – with this system, your listening pleasure is never more than one or two taps of your finger away.
Thanks to FireConnect™ you can even distribute your favourite songs throughout the house: build a multi-room network with FireConnect™ devices from Pioneer or other manufacturers and use connected sources wherever you may be – or synchronised in multiple rooms. Television sound is supported as well since the FS-W40 is equipped with a full-fledged HDMI connector panel that not only transmits ultra-HD image signals to your TV but conversely also feeds its sound to the system via the audio return channel.
