Audio
| Audio D/A Converter (DAC) |
24-bit / 192kHz |
| Audio output channels |
5.2 |
| Audio decoders |
Dolby TrueHD, DTS-HD |
| Audio Return Channel (ARC) |
Y |
Subwoofer
| Subwoofer RMS power |
100 W |
Technical details
| Bass adjustment |
Y |
| Firmware upgradeable |
Y |
| Streaming capability |
Y |
| Deep colour support |
Y |
Ports & interfaces
| Composite video in |
2 |
| Number of HDMI outputs |
1 |
| Composite video out |
1 |
| HDMI in |
6 |
Weight & dimensions
| Front speaker dimensions (WxDxH) |
106 x 106 x 116 mm |
| Satellite speaker dimensions (WxDxH) |
106 x 106 x 116 mm |
| Satellite speaker weight |
600 g |
| Center speaker weight |
1000 g |
| Subwoofer weight |
5300 g |
| Subwoofer dimensions (WxDxH) |
230 x 358 x 418 mm |
| Center speaker dimensions (WxDxH) |
270 x 106 x 100 mm |
| Front speaker weight |
800 g |
| Main unit dimensions (WxDxH) |
435 x 331.5 x 168 mm |
| Main unit weight |
8500 g |
Radio
| Radio Data System (RDS) |
Y |
| Preset stations quantity |
30 |
| FM radio |
Y |
| Supported radio bands |
AM, FM |
Center speaker
| Center speaker RMS power |
100 W |
Optical drive
| Optical disc player type |
Not included |
| Disc types supported |
N |
Front speakers
| Front speakers RMS power |
400 W |
Certificates
| Digital Living Network Alliance (DLNA) certified |
Y |
Packaging content
| Quick start guide |
Y |
| Warranty card |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
5.2-Channel AV Receiver with 4K Pass Through + Speaker Package with HD Audio
A quality 5.2 home cinema system is like a second life for your favourite films. Just connect a Blu-ray or DVD player to the package and you’re ready to go. There are 4 HDMI inputs and the receiver allows for Ultra HD 4K pass through.

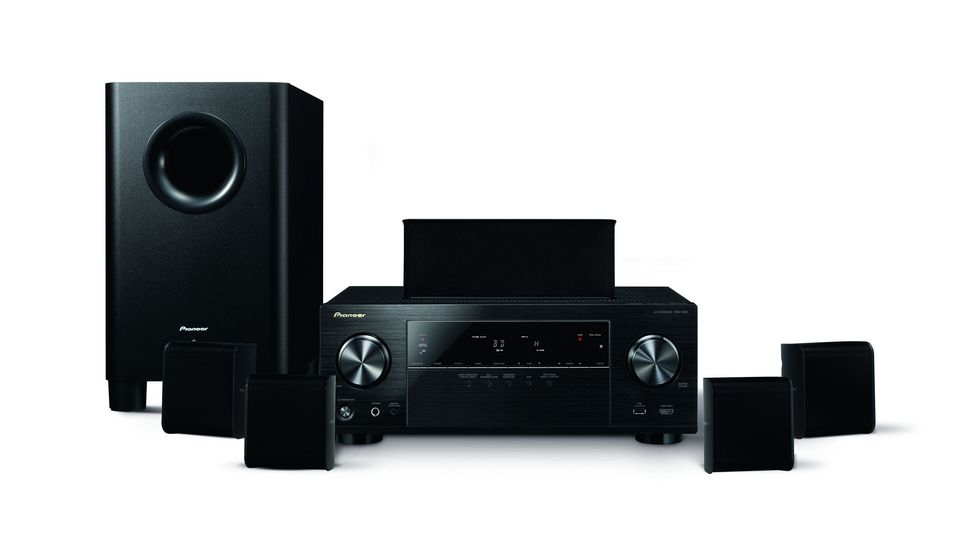

The package includes an AV receiver, 5 small, rich-sounding satellite speakers that can be discreetly positioned around the room, and a powerful subwoofer for rumbling lows. If you want, you can also add an extra subwoofer thanks to the dual subwoofer preout.
Loves your iDevices
Made for iPod, iPhone and iPad certification means it’s easy to connect your Apple devices to seamlessly bring your music and video library into your living room. The front USB terminal allows a direct connection, also providing battery charge for your devices.
Enjoy uncompressed HD audio
The AV receiver supports the latest Dolby TrueHD and DTS-HD Master Audio surround soundtracks, so you can enjoy uncompressed, high-definition multichannel audio from Blu-ray discs, as well as from other media.
True Home Cinema
Benefit from a lively, sensory experience with 5.1 HD virtual 3D sound. The 5 speakers and powerful subwoofer fill the space with superior quality audio and transform your living area into a genuine home cinema.
Always in full control
Using the convenient iControlAV5 app, you can easily control all important functions directly from your smartphone or from your tablet. The iControlAV5 app is available for free for iOS and Android devices.
Enjoy Spotify Connect
Enjoy on demand access to millions of songs with Spotify’s digital streaming service. This AV receiver is ready for Spotify Connect, which lets you select songs on your Spotify app to listen to on your audio system.
Stream with ease
AirPlay compatibility allows enthusiasts to access their iTunes music library through the AV receiver. This AV receiver is also DLNA certified (1.5) to work as a Digital Media Player and Digital Media Renderer.
Easy USB access
The AV receiver has an easily accessible front USB terminal so you can quickly play your favourite music tracks. It supports all kinds of audio formats, such as MP3, WMA and AAC. It can also be used to charge connected devices.
4K Ultra HD video ready
Experience real high definition with 4K ultra-high resolution video. 4K Pass Through ensures your receiver is ready for the next generation of high def video.
Smarter room calibration
The MCACC System automatically compensates for differences in speaker size, level and distance, and equalises the frequency response. The included Phase Control technology furthermore improves the sound quality.
