Design
Cassette deck |
N |
Optical disc player |
Y |
CD changer |
N |
Multimedia
Bass reflex |
Y |
Karaoke |
N |
Audio amplifier |
Y |
Impedance |
4 Ω |
Tweeter diameter |
25 mm |
Woofer diameter |
120 mm |
Frequency range |
40 - 40000 Hz |
Total Harmonic Distortion (THD) |
0.7% |
Ergonomics
Treble adjustment |
Y |
Bass adjustment |
Y |
Other features
Speaker width |
156 mm |
Speaker height |
266 mm |
Speaker depth |
258 mm |
Ports & interfaces
DC-in jack |
Y |
Apple docking compatibility |
Not supported |
Audio (L,R) out |
1 |
Digital audio coaxial out |
1 |
Headphone outputs |
1 |
Digital audio coaxial in |
1 |
Digital audio optical in |
1 |
Phono inputs (RCA) |
2 |
Subwoofer out |
Y |
Performance
Video recording |
N |
Card reader integrated |
N |
MP3 playback |
Y |
Compatible memory cards |
Not supported |
USB direct playback |
Y |
Disc types supported |
CD |
Playback disc formats |
CD audio |
Weight & dimensions
Main unit dimensions (WxDxH) |
285 x 257.5 x 88 mm |
Packaging content
Handheld remote control |
Y |
FM antenna |
Y |
Radio
Supported radio bands |
FM |
Preset stations quantity |
40 |
Radio Data System (RDS) |
Y |

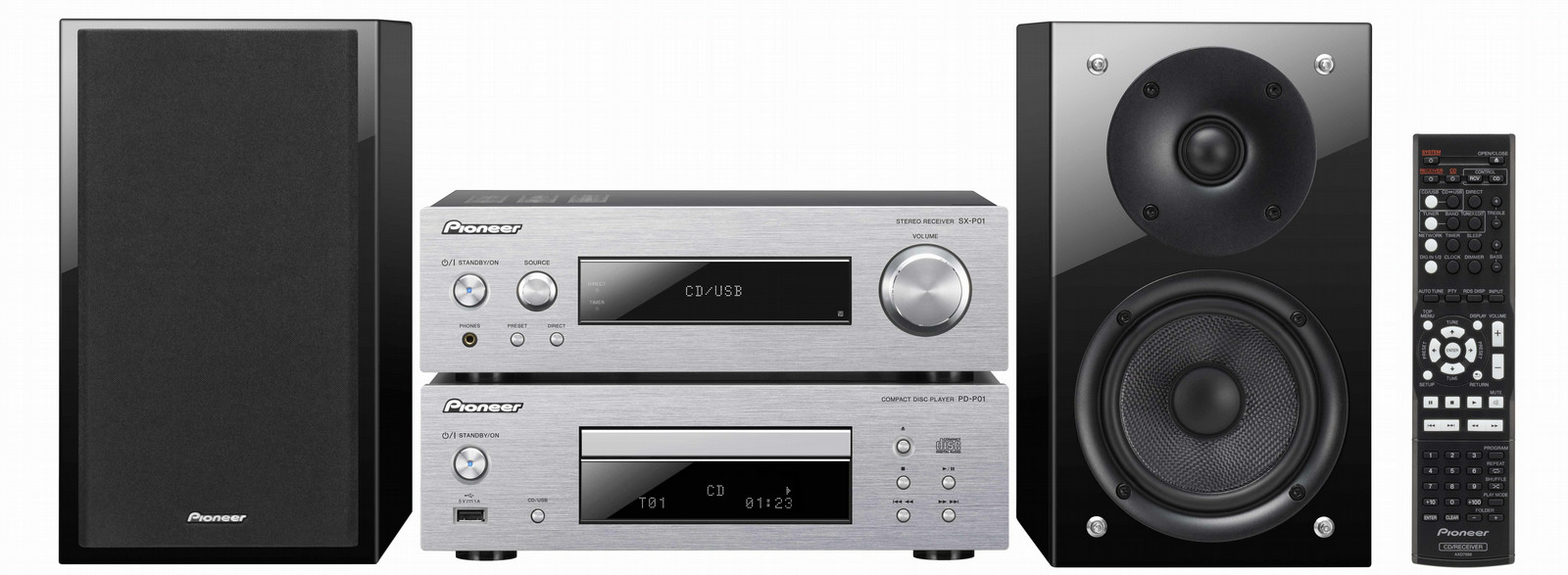

P1-S, LCD Display, 2-way, 2x75W, 4Ohm, RCA, USB, CD/FM, 28W/48W, 15.8kg, Silver/Black
<b>Pure Audio from space-saving Sound Components.</b>
High Quality sound from a compact, perfectly build system.
Enjoy CDs, Radio, MP3 / WMA files via USB or iPod/iPhone like never before.
These micro components only got the best sound technology available.
The CD player uses an EI transformer to guarantee silent operation and can transcode music in up to 192kHz 32bit rates.
The Class D amplifier brings highly efficient power and sound performance to the table. The amp drives a pair of beautiful piano-black 75 Watt, 2-way bass-reflex speakers using a 12mm high strength glass fibre cone and 25mm tweeter.
<b>CD like never before</b>
Equiped with a 192 kHz/32-bit DA converter, the player reproduces musical nuances in masterful sound quality.
<b>Pure Sound pleasure</b>
Direct mode: the sound mode preferred by music lovers.
<b>MP3, WMA, iPod, iPhone</b>
Play files in many formats, including hi-res 192kHz/32bit audio. Enjoy USB input and full support for your iPod and iPhone.
<b>Quality you can feel</b>
Aluminum front panel and knobs. Touching these stirs the senses.
<b>Direct Energy Amp</b>
Enjoy best-in-class Class D technology inherited from our A-70 and SC-LX85 flagship amps.
<b>Pure Audio Grade</b>
High strength glass fiber woofers, a specially tuned network circuit. The 75W speakers sound as good as they look.
