Audio
| Output impedance |
6 Ω |
| Input sensitivity |
200 mV |
| Power output per channel (1KHz@6 Ohm) |
150 W |
| Power output per channel (1KHz@8 Ohm) |
105 W |
| Power output per channel (20-20KHz@8 Ohm) |
150 W |
| Audio A/D Converter (ADC) |
24-bit/96kHz |
| Signal-to-Noise Ratio (SNR) |
98 dB |
| Audio D/A Converter (DAC) |
24-bit/192kHz |
Certificates
| Digital Living Network Alliance (DLNA) certified |
Y |
Technical details
| x.v.Color support |
Y |
| Deep colour support |
Y |
| Apple docking compatibility |
iPod, iPhone |
| Audio Return Channel (ARC) |
Y |
| AirPlay |
Y |
| Handheld remote control |
Y |
Outputs
| Headphone outputs |
1 |
| Remote (IR) output |
1 |
Inputs
| HDMI in |
6 |
| Digital audio optical in |
1 |
| Digital audio coaxial in |
1 |
Radio
| Internet radio |
Y |
| Radio Data System (RDS) |
Y |
| Supported radio bands |
AM, FM |
| Preset stations quantity |
63 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Wireless technologies |
Wired |
| Ethernet LAN connection |
Y |
7.2-Ch Dolby Atmos, 98 dB, 6 Ohm, HDMI, USB, 9.8 kg
<b>Get the ultimate home entertainment experience.</b>

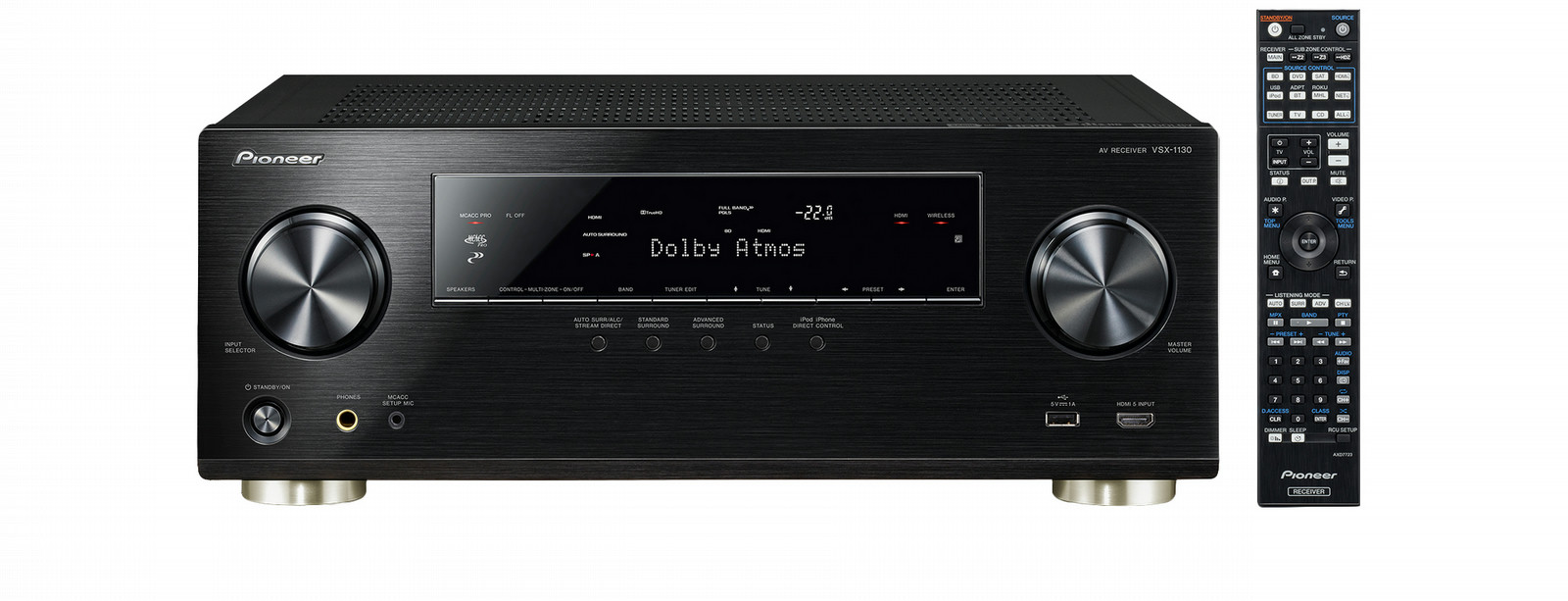

The VSX-1130 is the perfect power house to complete your home entertainment system. It offers up to 150 Watts of clear audio reproduction across all of its 7 channels, plus dual subwoofer preouts for optimal frequency response of the bass. A solid aluminum front panel supports the clean design.
This AV Receiver includes the latest surround sound technology: Dolby Atmos. It allows you to place overhead speakers for a multi-layered, dynamic, and three-dimensional sound that is completely in sync with the screen view, providing total immersion with unprecedented sound localisation and movement.
The VSX-1130 combines the latest connectivity and performance features and supports AirPlay, MHL, HTC Connect & DLNA audio networking. Connect your smartphone, tablet or laptop without hassle, either wired via LAN and USB or wireless via built-in Dual Band WiFi and Bluetooth. It allows you to easily play back Hi-Res audio content up to 192kHz/24bit and even DSD 2.8MHz/5.6MHz. Get direct access to streaming services such as Spotify Connect and vTuner internet radio and enjoy your favourite music.
On top, this AV receiver is ready to pass through 4K Ultra HD video signals to a compatible display. It even upscales lower resolution signals into 4K Ultra HD (up to 60p), allowing you to enjoy the highest quality picture available today.
The VSX-1130 is available in black with a high-quality, aluminum finish (VSX-1130-K).
<b>Dolby Atmos.</b>
<b>Feel every dimension</b>
This AV Receiver features Dolby Atmos, the latest audio platform for home theatre entertainment. Dolby Atmos offers seamless surround sound movement in a three-dimensional space with a sense of height created by the overhead speakers. It will fill your room with astonishing clarity, richness, detail, and depth.
<b>Professional room calibration</b>
MCACC PRO analyses the sound field of your speakers and automatically adjusts their virtual size, level, distance and response, as well as the equaliser settings for an excellent audio response. MCACC PRO offers full support of the Dolby Atmos surround format.
<b>4K/60p Ultra HD video</b>
Experience four times the current 1080p HD quality with 4K ultra-high resolution video. The receiver's 4K upscaling capabilities - up to 60p - make it possible to enjoy HD content in even better 4K quality.
<b>Easy setup & full control</b>
The Start-up Navi app is available to assist you during set up of your AV Receiver. As you proceed with the wizard, all setup including network settings will be completed smoothly. With the iControlAV5 app, you can control all important functions from your smartphone or from your tablet (iOS / Android).
<b>Hi-Res multi-channel audio</b>
Enjoy high-resolution audio playback like never before. The Pioneer AV Receivers are the first to realize DSD streaming (5.6MHz and 2.8MHz) via wired network and USB playback. As for PCM formats, up to 192kHz/24bit WAV, FLAC, AIFF and Apple Lossless files can be played. You can even playback the latest multichannel WAV and FLAC audio files with 96kHz/24bit resolution.
<b>Professional audio components</b>
The highly acclaimed 24-bit ES9006S SABRE Premier Audio DAC for 7.2 channel is adopted to deliver exceptional crystal clear sound. It features unprecedented dynamic range of up to 120 dB and low distortion, offering clear audio reproduction, free of jitter and digital artefacts.
<b>Dual Band WiFi & Bluetooth built-in</b>
The built-in Wi-Fi is dual band, supporting both 5 GHz and 2.4 GHz frequency channels, for steady and uninterrupted streaming even of Hi-Res Audio files. Easily stream songs from compatible devices using the built-in Bluetooth wireless technology. This AV receiver features A2DP and Audio/Video Remote Control Profile (AVRCP). Supported codecs include SBC and AAC.
<b>Stream with ease</b>
AirPlay compatibility allows users to access their iTunes music library through the AV Receiver. This AV Receiver is also DLNA certified (1.5) to work as a Digital Media Player and Digital Media Renderer. Play music content from your Mac/PC or a NAS drive. Gapless playback is supported for DSD, WAV, FLAC, AIFF, AAC, MP3, and Apple Lossless files.
<b>Enjoy Spotify Connect</b>
Enjoy on demand access to millions of songs with Spotify’s digital streaming service. This AV receiver is ready for Spotify Connect, which lets you select songs on your Spotify app to listen to on your audio system.Db,
