Video
| Analog signal format system |
NTSC, PAL |
| Video compression formats |
H.264 |
| Digital zoom |
2 - 8 x |
Technical details
| Video loss detection |
Y |
| Motion sensor |
Y |
| Channels quantity |
4 channels |
Packaging content
| Handheld remote control |
Y |
Hard drive
| Number of hard drives supported |
1 |
| Hard drive interface |
Serial ATA |
Ports & interfaces
| RS-485 ports |
1 |
| BNC input ports |
4 |
| BNC output ports |
1 |
Networking
| Supported network protocols |
TCP/IP, PPPoE, DHCP, DDNS |

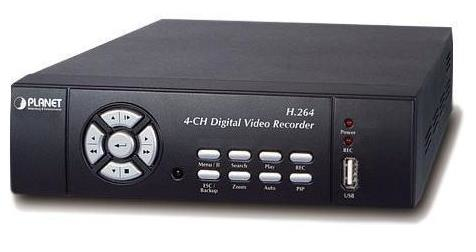

DVR-462 - 4-Ch, NTSC/PAL, 720x480, 120fps, SATA, USB 2.0, Black
Nowadays, the Networking / IP surveillance has been driven the surveillance market development. The PLANET Digital Video Recorder, DVR-462, is released to help the traditional CCTV surveillance system to upgrade to packet switching TCP/IP network. The DVR-462 supports the latest technology - H.264 that can compress the video file to minimum size. H.264 compress rate is two times faster than MPEG-4 so that the recording time can be longer in the same HDD size and it offers better and smoother view quality via Internet or local network.
The DVR-462 is positioned as an entry-level security device suitable for the Home/SOHO market. It supports up to 4 cameras and is easy for installation and operation. The key features offered by the DVR-462 for a full-time security application include video data recording, remote surveillance over a secure IP network and viewing / recording / playback at the same time.
The DVR-462 also provides triplex DVR functions to meet enhancive application demands. The network DVR can be placed either in LAN or WAN connected with easy-to-remember DDNS feature. With the Plug-N-Watch capability of web browser, the network administrator or system operator can seamlessly complete network deployment in just a few minutes.
In various surveillance applications via RS-485 interface, the DVR-462 is capable to control most types of PTZ protocols. With integrated alarm I/O, it can ring a siren to notify the surveillance administrator when detecting an event. The network DVR can also do motion detection / schedule recording to complete surveillance plans. Besides being controlled via front panel and remote controller, the DVR-462 can also be operated by USB mouse, which is user-friendly to users.
Securing surveillance content stored on hard-disk of the digital video recorder systems and providing conditional access to manage stored content, PLANET Digital Video Recorder series offers a perfect solution for both security professionals and business owners who need the unparalleled flexibility and reliability in IP surveillance field.
