Weight & dimensions
| Width |
94 mm |
| Depth |
81 mm |
| Weight |
220 g |
| Height |
26 mm |
Networking
| Auto MDI/MDI-X |
Y |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Ethernet interface type |
Fast Ethernet |
| Fiber ethernet cabling technology |
100BASE-FX |
| Networking standards |
IEEE 802.3, IEEE 802.3u |
| Copper ethernet cabling technology |
100BASE-TX |
| Data transfer rate |
100 Mbit/s |
Power
| Input voltage |
5 V |
| Power consumption (typical) |
6.2 W |
| Input current |
2 A |
Performance
| Fiber cable diameters supported |
62.5/125 µm |
| Fiber mode structure |
Multi-mode |
| Maximum transfer distance |
2000 m |
| Wavelength |
1550 nm |
Operational conditions
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
Design
| Internal |
N |
| LED indicators |
Y |
Additionally
| Colour of product |
Black |
| Transfer rate (Mbps) |
200 Mbit/s |
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 50 °C |

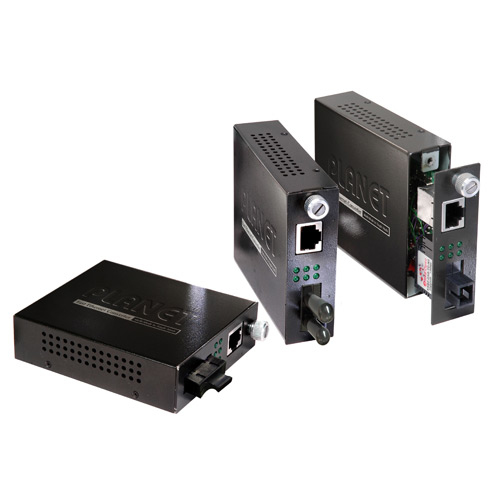

10/100Base-TX to 100Base-FX (ST, MM) Smart Media Converter-2km
Distance Extended with Fiber Optic Cable
PLANET FST-80x Smart Media Converter series provides media conversion between 10/100BASE-TX and 100BASE-FX interfaces, such as multi-mode ST/SC connectors (2km), single-mode SC connector (15/35/50km) and single fiber connector using the wavelength-division multiplexing (WDM) technology (20/60km) to enable to extend links over long distances using fiber optic cable.
Enhanced Smart Management Features
The FST-80x series provides auto MDI/MDI-X on their TP port and store-and-forward mechanism to eliminate faulty packets. Use the DIP switch from the FST-80x to configure the available smart functions, such as the half/full duplex, auto-negotiation / force and 10/100Mbps options for TP and fiber interfaces. Besides, the Link Loss Return (LLR) and Link Loss Carry Forward (LLCF) functions can immediately alarm network administrator once there is a media link issue, thus helping to monitor the status of the entire network.
Easy Installation
The FST-80x series can be connected easily and cost-effectively as these smart media converters can be used as a standalone unit when powered on by its DC adapter, or used as a slide-in module connected to PLANET 19-inch, 16-slot web smart/managed media converter chassis (MC-1600MR/MC-1600MR48 and MC-1610MR/MC-1610MR48). When working with the web smart/managed media converter chassis, the status of the FST-80x can be monitored via the local RS-232 console and remote web interface.
