Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Switching capacity |
20 Gbit/s |
| Throughput |
14.8 Mpps |
Operational conditions
| Heat dissipation |
37.2 BTU/h |
Management features
| MIB support |
RFC 3635 Ethernet-like MIB, RFC 2863 Interface Group MIB, RFC 2819 RMON (1, 2, 3, 9), RFC 1493 Bridge MIB |
| Quality of Service (QoS) support |
Y |
Networking
| VLAN support |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| 10G support |
N |
| Full duplex |
Y |
Power
| Number of power supply units |
1 |
| Input voltage |
12 V |
Security
| SSH/SSL support |
Y |
| MAC address filtering |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity |
2 |
Protocols
| Supported network protocols |
IPv4/IPv6 IP-based ACL / MAC-based ACL |

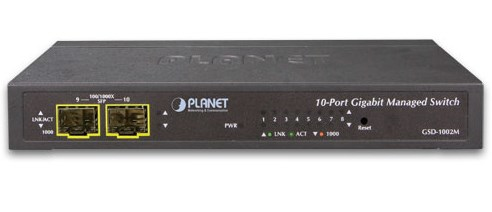

8-Port 10/100/1000Mbps + 2-Port 100/1000X SFP Managed Desktop Switch
PLANET GSD-1002M is an 8-port 10/100/1000Mbps + 2-port 100/1000X SFP Managed Desktop Switch specially designed to build a reliable full Gigabit backbone to transmit and forward data to remote network through fiber optic. It provides 8-port 10/100/1000Base-T copper and 2 extra 100/1000Base-X SFP fiber optic interfaces with dual power system. Besides support for 20Gbps switch fabric to handle extremely large amounts of video, voice and important data in a secure topology, the GSD-1002M provides user-friendly but advanced IPv6 / IPv4 management interface and abundant L2 / L4 switching functions. It is the best investment for businesses/SOHOs expanding or upgrading their network infrastructure.
IPv6 / IPv4 Full-functioned Secure Switch
The GSD-1002M is the ideal solution to fulfilling the demand of IPv6 management Gigabit Ethernet Switch. It supports both IPv4 and IPv6 management functions and can work with original network structure. It provides advanced Layer 2 to Layer 4 data switching and Quality of Service traffic control, Access Control List, network access control and authentication, and Secure Management features to protect building automation network connectivity with reliable switching recovery capability that is suitable for implementing fault tolerant and mesh network architectures.
Spanning Tree Protocol and Dual Power Input for High Available Network System
The GSD-1002M features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates Spanning Tree Protocol (802.1s MSTP), auto loop protection and dual power input system (PoE In + 12V DC) into customer’s automation network to enhance system reliability and uptime. In the example below, PoE power has failed with dropped cable and DC power will run hardware failover function automatically to keep powering the switch without any loss.
Handheld Size for FTTD Solution
The GSD-1002M provides high-performance edge service and plug-and-play design for FTTD (Fiber to the Desktop) solutions. FTTD service is fiber optic cabling with reliable and expandable, lower-cost wiring architectures, and long distance capability. The GSD-1002M supports dual-speed, 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules to connect fiber access point, with high flexibility to be installed in communication closet or major computer room for SMBs.
