Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100/1000Mbps |
| Switching capacity |
32 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
Other features
| Packet transfer speed |
23.8Mp/s |
Networking
| Auto MDI/MDI-X |
Y |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Flow control support |
Y |
| 10G support |
N |
| Full duplex |
Y |
Power
| Power consumption (typical) |
13 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50/60 Hz |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Gigabit Ethernet (copper) ports quantity |
16 |
Operational conditions
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-10 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
Weight & dimensions
| Depth |
180 mm |
| Weight |
1900 g |
| Width |
440 mm |
| Height |
45 mm |
Design
| LED indicators |
Y |
| Certification |
FCC, CE |
| Form factor |
1U |
| Rack mounting |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Colour of product |
Black |
| Jumbo Frames support |
Y |
| Operating temperature range (T-T) |
0 - 50 °C |

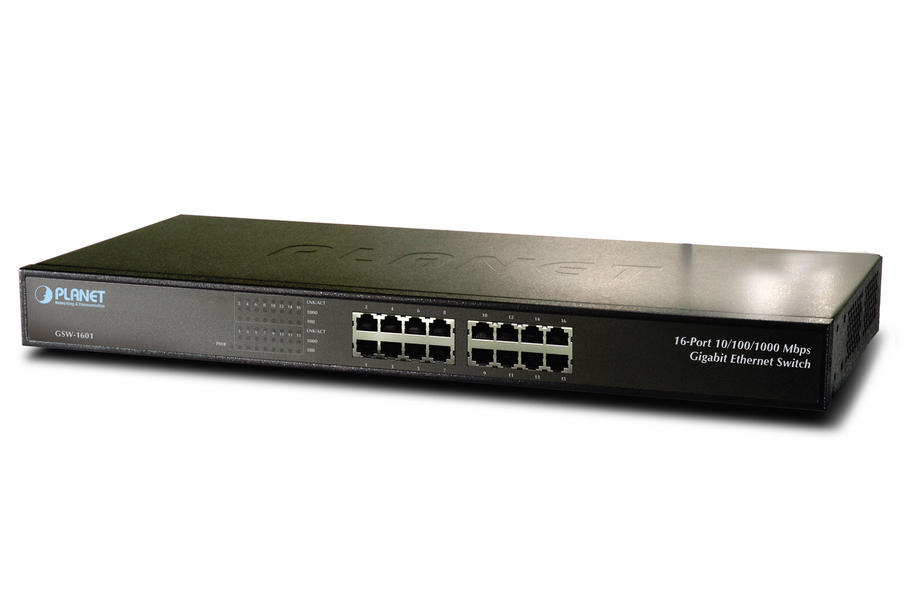

GSW-1601 - 16x 10/100/1000Mbps, Auto-MDI/MDI-X, 32Gbps, Black
Cost-Effective Gigabit Solution for Enterprise Backbone and Data Center Networking
The PLANET GSW-1601 provides 16 RJ-45 10/100/1000Mbps ports for high-speed network connectivity. It can automatically identify and determine the correct transmission speed and half / full duplex mode of the attached devices with its 16 Gigabit ports that support 9K jumbo frame feature. Therefore, the GSW-1601 can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.
High Performance
The GSW-1601 provides high performance architecture of switch that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 32Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the Flow Control function of the GSW-1601 enables routers and servers directly connect to the Switch for fast and reliable data transfer.
All RJ-45 copper interfaces in the GSW-1601 support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. It also supports standard for Auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
Excellent Traffic Transmission
The GSW-1601 supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity, which eliminates unnecessary traffic and relieves congestion on critical network paths. With an intelligent address recognition algorithm, the GSW-1601 could recognize up to 8K different MAC address. The high data throughput and 32Gbps internal switching fabric makes it ideal for most Gigabit environments, especially when network upgrades to a Gigabit environment.
