Networking
| Auto MDI/MDI-X |
Y |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Fiber ethernet cabling technology |
1000BASE‑LX |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T, 1000BASE-T |
| Data transfer rate |
1000 Mbit/s |
Power
| Input voltage |
5 V |
| Power consumption (typical) |
4 W |
| Input current |
2 A |
Performance
| Fiber cable diameters supported |
9/125 µm |
| Wavelength-division multiplexing (WDM) |
Y |
| Fiber mode structure |
Single-mode |
| Maximum transfer distance |
60000 m |
| Wavelength |
1550 nm |
Operational conditions
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
Design
| Internal |
N |
| LED indicators |
Y |
Weight & dimensions
| Depth |
70 mm |
| Width |
93 mm |
| Height |
26 mm |
Additionally
| Colour of product |
Black |
| Transfer rate (Mbps) |
2000 Mbit/s |
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Operating temperature range (T-T) |
0 - 50 °C |
10/100/1000Base-T to 1000Base-LX Managed Media Converter (WDM,SM, TX:1310 RX:1550)-60km
WEB/SNMP/OAM Remotely Managed Gigabit Converter

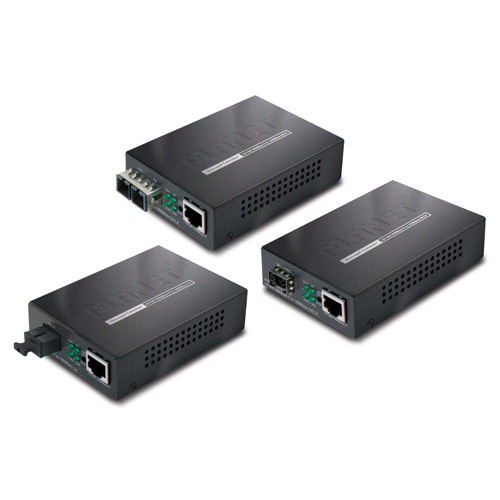

PLANET GT-90x series is a 10/100/1000Base-T to 1000Base-LX / SX Managed Media Converter developed to meet the advanced demand for further Network applications and equipped with the feature of plug and play. The GT-90x series provides all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and offers highly stable Gigabit fiber performance. It supports conversion between 10/100/1000Base-T and 1000Base-LX / SX network, which includes SC / SFP / WDM connectors with single-mode or multi-mode media as required. The Ethernet signal allows three types of segments to connect easily, efficiently and inexpensively.
Friendly/Centralized/Simple Web Management Interface
For efficient management, the GT-90x Managed Gigabit Ethernet Media Converter series is equipped with remote Web / SNMP interface. With its built-in Web-based management, PLANET GT-90x series acts as an easy-to-use, platform-independent management and configuration facility. The GT-90x series also supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. Moreover, the TS-1000/802.3ah OAM protocol (operations, administration, and maintenance) supported helps remote device be managed and monitored by the GT-90x.
Enhanced Management Features
The GT-90x series can be programmed for advanced management functions such as IP address configuration, DHCP Client function, port configuration, converter configuration, 802.1Q Tag VLAN, Q-in-Q VLAN, Ingress/Egress bandwidth control, QoS and Layer protocol filter, broadcast storm and bandwidth control, to enhance bandwidth utilization.
Easy Installation
As the GT-90x Managed Gigabit Ethernet Media Converter series fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX / SX, the Gigabit media conversion installation is quite quick and easy simply by utilizing plug and play feature. This GT-90x series can be used as a stand-alone unit or as a slide-in module to PLANET Media Converter Chassis (MC-700, MC-1000 and MC-1500). The media converter chassis can provide DC power to GT-90x series to maintain the fiber-optic network at the central location.
