Data transmission
| MAC address table |
2048 entries |
| Store-and-forward |
Y |
| Switching capacity |
1 Gbit/s |
| Throughput |
0.74 Mpps |
Operational conditions
| Heat dissipation |
46 BTU/h |
Optical fiber
| Fiber type |
Multi-mode |
| RX sensitivity |
-32 dB |
| Transmission distance (max) |
2 km |
| Wavelength |
1310 nm |
Networking
| Auto MDI/MDI-X |
Y |
| MAC address auto-learning supported |
Y |
| MAC address auto-aging supported |
Y |
| Flow control support |
Y |
| 10G support |
N |
| Full duplex |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Fiber ports quantity |
1 |
| Fast Ethernet (copper) ports quantity |
4 |
| Terminal block port |
Y |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Design
| DIN rail mounting |
Y |
| Wall mountable |
Y |
| Rack mounting |
N |

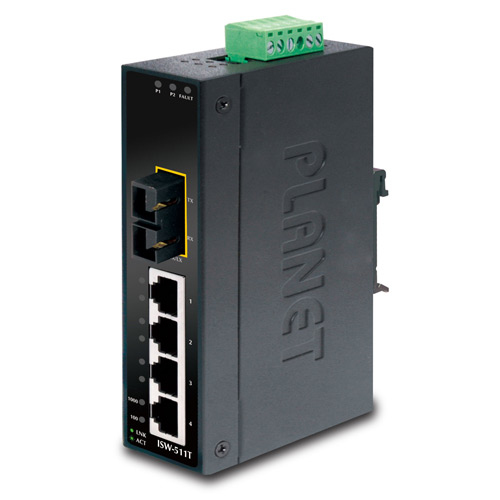

Unmanaged Industrial Ethernet Switch, 4 x 10/100Base-TX RJ-45, 1 x 100Base-FX, Multi-Mode, 2km
Highly Convenient and Feasible Industrial Robust Switch
PLANET has upgraded two models named ISW-511T and ISW-511TS15 for use in environments with wide operating temperature. The capital ‘T’ (ISW-511T and ISW-511TS15) shown in the model names means that they can support and operate under WIDE-TEMPERATURE environment ranging from -40 up to 75 degrees C. As we know the temperature in many places and countries of the world are lower than -10 degrees C, these two new models, ISW-511T and ISW-511TS15, will be the right products for Transportation, Manufacturing, Security and Surveillance network deployments in those harsh environments. The ISW-511T / ISW-511TS15 also provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets.
Distance Extendable and Flexibility
The ISW-511T and ISW-511TS15 each includes four 10/100Base-TX auto-negotiation ports and one 100Base-FX port. The ISW-511T is equipped with 100Base-FX multi-mode SC interfaces for transmission distance up to 2km and ISW-511TS15 is equipped with 100Base-FX single-mode SC interfaces for transmission distance up to 15km. Users can choose the suitable model for network deployment either for long distance (ISW-511TS15) or short distance (ISW-511T) transmission.
Easy Installation and Wide Range of Power Usage
The ISW-511T and ISW-511TS15 are designed with a compact case that allows either DIN rail or panel mounting for efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.
