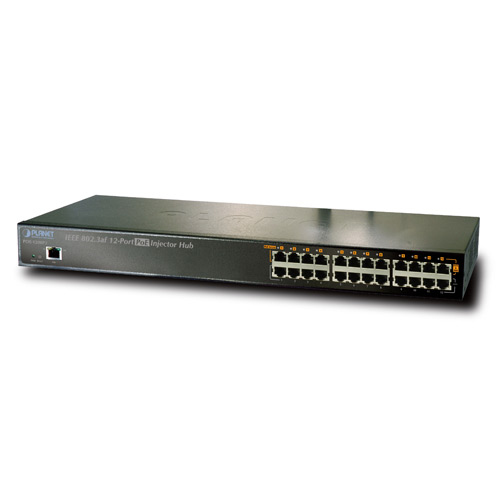

Planet POE-1200P2 PoE adapter

PoE Injector Hub, 12-Port, w / Web Management <b>Quick and Easy PoE Network Deployment</b>

PLANET POE-1200P2 is a 12-port IEEE 802.3af Power over Ethernet Web Management Injector Hub which complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3af standards. With 12 10/100Base-TX Fast Ethernet ports, POE-1200P2 support full 48V DC power for any remote IEEE 802.3af powered device (PDs) like wireless LAN access point, IP phones, and IP cameras. Supporting PoE power budget of 190 watts, POE-1200P2 provides sufficient 15.4-watt PoE power to 12 remote PD devices.

<b>Easy Cabling Installation</b>

The POE-1200P2 is installed between a regular Ethernet Switch and the powered devices, injecting power without affecting the data transmission. They offer a cost effective and quick solution to upgrading network system to IEEE 802.3af Power over Ethernet system without replacing the existing Ethernet switch. There are 24 RJ-45 STP ports on the front panel of PoE Injector Hub, in which the 12 ports on the lower stack function as "Data input" and the other 12 ports on the upper stack function as "PoE (Data and Power) output". Each of the "PoE output" port on the upper stack operates as a power injector which transmits DC Voltage to the CAT 5 cable to transfer data and power simultaneously between the Injector and Splitter.

<b>Friendly / Simple Web Management Interface</b>

To efficiently manage the powered devices, POE-1200P2 provide Web management interface in which administrators can use the functions including port enable / disable, port priority, system configuration, and User Name / Password changing and with smart features for powered device. The PoE injector Hub can auto detect the power status of each port and show messages on its Web management interface. These features also provide a cost-effective way to manage the device via from Internet whenever you are at work or at home.
