Antenna
| Antenna gain level (max) |
3.8 dBi |
| Integrated antenna |
Y |
| Antennas quantity |
1 |
Power
| Input voltage |
12 V |
| Power consumption (max) |
12 W |
| Input current |
2 A |
Protocols
| Supported network protocols |
CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP |
| DHCP server |
Y |
Performance
| 5 GHz |
Y |
| Number of WLAN connections (max) |
128 |
| Universal Plug and Play (UPnP) |
Y |
| Receiver sensitivity |
11b (11Mbps): -79dBm\n11g (54Mbps): -70dBm\n11n (20M)mode: -67dBm\n11n (40M)mode: -64dBm\n11a: -70dBm\n11n (20M)mode: -67dBm\n11n (40M)mode: -64dBm\n11ac (20M)mode: -57dBm\n11ac (40M)mode: -54dBm\n11ac (80M)mode: -51dBm |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Modulation |
DSSS |
| 2.4 GHz |
Y |
| Web-based management |
Y |
| Reset button |
Y |
| Frequency band |
2.4 - 5 GHz |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
| DC-in jack |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Transfer rate (Mbps) |
1200 Mbit/s |
Gigabit Ethernet, 1200 Mbps, 802.11 a/ac/b/g/n, 308g, White
<b>Amazing, Next-Generation Wireless High-Speed Connection</b>

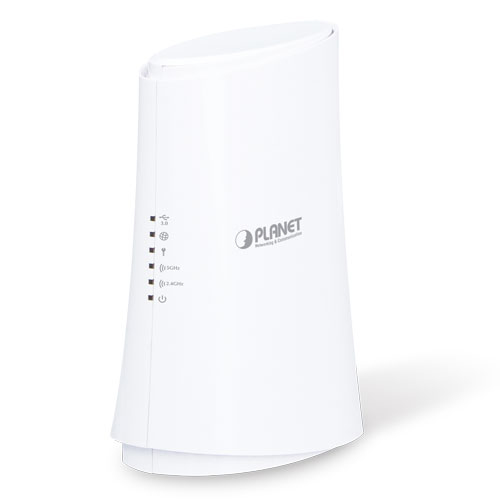

PLANET WDRT-1200AC Wireless Broadband Router supports IEEE 802.11a/b/g/n/ac standard, dual band technology and Gigabit LAN and WAN, meaning it can provide the wireless speed up to 866Mbps in the 5GHz frequency band and 300Mbps in the 2.4GHz frequency band at the same time, which is 16 times faster than that of the traditional 11g access point. With its outstanding stability of high-speed wireless transmission and enhanced reliability, the WDRT-1200AC can provide users with excellent multimedia streaming through their mobile devices anywhere, anytime in the home and office.
<b>2.4GHz and 5GHz Simultaneous Dual-Band Wireless Connectivity</b>
Since there are more and more wireless applications and electric devices using the radio frequency of 2.4GHz, the wireless channel of 2.4GHz has been already too crowded for clients to enjoy the high-speed wireless connection. In order to avoid the wireless interference between each other, PLANET WDRT-1200AC provides users with the radio frequency of 5GHz for watching HD videos or playing online games additionally. At the same time, it enables other users to surf the Internet via the original radio frequency of 2.4 GHz. The WDRT-1200AC is just like 2 totally independent Access Points in one device for you.
<b>Gigabit LAN Throughput Boosts Network Traffic</b>
Gigabit Ethernet is the perfect solution for one of the major requirements of today's Local Area Networks: improving communication speed. With throughput up to 10 times that of the existing 100Mbps solutions, the WDRT-1200AC fully employs the full functionality of the 802.11ac wireless standards, eliminating the bottleneck of the transmission speed of the megabit wired type. Using the WDRT-1200AC to connect your desktop, NAS, media player and game console guarantees extremely high throughput and excellent signal quality.
<b>Home DLNA Media Server over USB File Sharing</b>
The WDRT-1200AC is built-in with one USB port which can be connected to an external USB storage device for file sharing. Moreover, the DLNA (Digital Living Network Alliance) compliant media server feature allows multimedia contents, such as stream videos, music and photos, to be easily shared among SmartTVs, tablets, mobile phones and laptops on a home network. Thus, all clients on the network can share mass storage through the WDRT-1200AC without complicated network configuration. Via the USB port, it also can output 5V DC power to charge any USB compliant devices.
