Protocols
| DHCP client |
Y |
| DHCP server |
Y |
Performance
| Quality of Service (QoS) support |
Y |
| Frequency band |
2.412 - 2.484 GHz |
| Number of users |
60 user(s) |
| Bandwidth |
2.4 GHz |
| Number of WLAN connections (max) |
40 |
| Transmitting power |
29 dBmW |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Internal memory |
32 MB |
| Flash memory |
8 MB |
| Modulation |
16-QAM, 64-QAM, OFDM, BPSK |
| Channels quantity |
8 |
Antenna
| Antenna connector type |
N-Type |
Power
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Transfer rate (Mbps) |
300 Mbit/s |

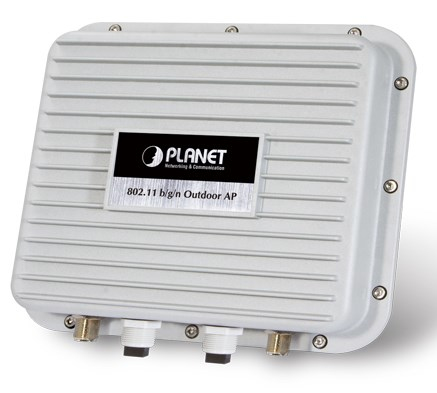

2.4GHz 300Mbps 802.11n Outdoor Wireless Access Point
<b>High Power Outdoor Wireless Coverage</b>
PLANET has come out with the latest high power outdoor wireless LAN solution – the WNAP-6350 300Mbps PoE wireless outdoor AP. It provides higher transmit power, better performance, wider coverage and more stable connection than standard wireless outdoor AP. As an IEEE 802.11b/g/n compliant wireless device, the WNAP-6350 is able to give stable and efficient wireless performance for long distance application. Adopting IEEE 802.11n standard and 2T2R MIMO technology, the WNAP-6350 is possible to deliver six times faster data rate up to 300Mbps than the normal 802.11g wireless device. It also features adjustable output power up to 500mW to extend broader coverage in outdoor long range application.
<b>Multiple Operating and Wireless Modes</b>
The WNAP-6350 supports multiple types of wireless communication connectivity (AP, Client CPE, WDS PtP, WDS PtMP, Repeater) allowing to meet various application requirements and thus it gives users more comprehensive experience when accessing through Wireless LAN. It helps users to easily build a wireless network and extend the wireless range of the existing wireless network.
The WNAP-6350 also supports WISP mode, so CPE users could easily connect to Internet via WISP provider or connect to a wired network.
<b>Advanced Security and Management</b>
In terms of security, besides 64/128- bit WEP encryption, the WNAP-6350 is integrated with WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x authority to secure and protect your wireless LAN. The wireless MAC filtering and SSID broadcast control consolidate the wireless network security and prevent unauthorized wireless connection. To meet the demand for enterprise and various applications, the WNAP-6350 enhances security and management features such as multiple SSIDs support.
<b>Perfect Solution for Outdoor Environment</b>
The WNAP-6350 is perfectly suitable for outdoor environments and exposed locations. With IP67 and aluminum rugged housing, the WNAP-6350 can perform normally under rigorous weather conditions including heavy rain, wind and snow. Moreover, the WNAP-6350 is rated to operate at the temperature from -30 to 75 degrees C and thus it can operate more stably than general outdoor equipment. It is the best way to use the WNAP-6350 to build outdoor wireless access applications between buildings on campuses, business communities, rural areas and more.
<b>Flexible Deployment with PoE Feature</b>
Compliant with IEEE 802.3af/at Power over Ethernet standard, the WNAP-6350 can be powered by PSE (Power Sourcing Equipment) via a single UTP cable. It thus reduces the needs of extra cables and dedicated electrical outlets on the wall, ceiling or any other place that is difficult to reach. Furthermore, the WNAP-6350 is also suitable to be integrated with PoE Solar Power System to offer farther wireless service in remote areas. It enables the wireless LAN deployment to become more flexible and frees you from worry about power locations.
<b>Easy Installation & Management</b>
With user-friendly Web UI and step by step Setup Wizard, the WNAP-6350 is easy to install, even for users who never experience in setting up a wireless network. Furthermore, with SNMP-based management interface, the WNAP-6350 is convenient to be managed and configured remotely.
