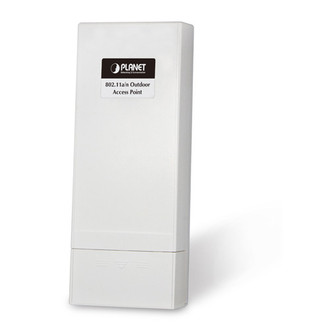

Planet WNAP-7300 100Mbit/s White WLAN access point

Name: Planet WNAP-7300
Brand: Planet

EAN: 4711213687396

MPN: WNAP-7300

🚚 Select the country of delivery:

Delivery from:

Germany

Updating price ... 📣 Send Price inquiry Не поставляется

Delivery cost & estimated delivery time:

От

days

Sale and delivery by:

Mercatos.com

. . Imprint / Online Dispute Resolution Terms of Service Cancellation policy Data protection 💳 Payment Methods...

buy now I will buy itASK A QUESTION

Advertising *

Показать все предложения

See all offers

Where to buy and prices (Advertising *)

On Top

в наличии

to seller

* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Performance

Receiver sensitivity	IEEE 802.11a:\n-89 DBm @ 6 Mbps\n-88 DBm @ 9 Mbps\n-87 DBm @ 12 Mbps\n-86 DBm @ 18 Mbps\n-83 DBm @ 24 Mbps\n-79 DBm @ 36 Mbps\n-75 DBm @ 48 Mbps\n-73 DBm @ 54 Mbps\n\nIEEE 802.11n:\nHT20 MCS0 ~ MCS7 ≦ -89dBm\nHT40 MCS0 ~ MCS7 ≦ -85dBm\nHT20 MCS8 ~ MCS15 ≦ -83dBm\nHT40 MCS8 ~ MCS15 ≦ -80dBm
Transmitting power	26 dBmW
Ethernet LAN data rates	10, 100 Mbit/s
Wi-Fi data rate (max)	54 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11n
Bandwidth	5 GHz
Modulation	16-QAM, 64-QAM, BPSK, DQPSK, OFDM

Power

Input voltage	15 V
Input current	0.8 A

Security

Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Design

Internal	N
LED indicators	Y
International Protection (IP) code	IP55

Weight & dimensions

Depth	255.6 mm
Width	110.98 mm
Height	47.65 mm

Antenna

Antenna gain level (max)	16 dBi
Antenna connector type	RP-SMA
Antennas quantity	2

Ports & interfaces

DC-in jack	Y

Operational conditions

Operating relative humidity (H-H)	10 - 95%

Additionally

Colour of product	White
Transfer rate (Mbps)	100 Mbit/s
Ethernet LAN (RJ-45) ports quantity	2
Operating temperature range (T-T)	-20 - 70 °C

802.11a/n Wireless LAN Outdoor AP - IEEE 802.11a/n standards compliant
- 5GHz wireless networks deliver widely and better connections with less interference
- Multiple Antenna choices: Built-in 16dBi dual-polarity Antenna, and two External Antenna Connectors (Reverse SMA connector)
- IP-55 case protection against rigorous weather conditions
- High Transmit Output Power up to 400mW with multiple adjustable transmit power control
- Power over Ethernet design (with proprietary injector)
- Multiple Wireless Access Modes: AP, Client, Client CPE (WISP), WDS, Repeater
