Antenna
| Gain |
5 dBi |
| Detachable antenna(s) |
Y |
| Frequency range |
2.4000 - 2.4835 GHz |
| Transmit power |
19 - 25 dBmW |
| Antenna connector type |
RP-SMA |
| Antenna |
Y |
Performance
| Receiver sensitivity |
802.11b: -95dBm\n802.11g: -92dBm\n802.11n: -90dBm |
| Mac operating systems supported |
Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard |
Ports & interfaces
| Host interface |
USB |
| Internal |
N |
| USB version |
2.0 |
Networking
| Modulation |
CCK, DQPSK, OFDM, DBPSK |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Wi-Fi |
Y |
Power
| Input voltage |
5 V |
| USB powered |
Y |
Additionally
| Wireless technologies |
Wireless |
| Transfer rate (Mbps) |
150 Mbit/s |

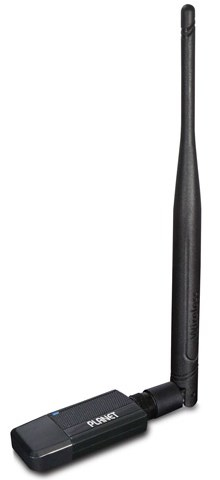

PLANET WNL-U555HA High Power 802.11n Wireless Compact USB Adapter features a high-gain 5dBi Wi-Fi upgradable antenna and high power output to overly double the wireless coverage and sensitivity of its standard wireless 11n adapters. It also provides powerful and stable performance to Windows/Linux Laptop, PC, or Mac linked unlimited wireless network.
<b>High Speed 802.11n Wireless Experience</b>
The WNL-U555HA offers a reliable and cost-effective wireless extended solution. It adopts IEEE 802.11n technology and is backward compatible with IEEE 802.11b and 802.11g. The WNL-U555HA supports USB 2.0 interface that integrates with one transmit channel and one concurrent receive channel to enable the speed to go up to 150Mbps for both data upload and download.
<b>Wireless Coverage Plus !</b>
The WNL-555HA is equipped with external 5dBi High-Gain antenna which provides strong signal and excellent performance even in the long range or bad environment. With detachable SMA connector design in the WNL-U555HA, it allows users to manually exchange higher gain antenna for further wireless coverage range.
<b>Advanced Wireless Security</b>
The WNL-U555HA provides advanced security features including 64/128-bit WEP, WPA / WPA2 and WPA-PSK / WPA2-PSK with TKIP/AES encryption. Furthermore, in order to simplify the security configurations, WPS (Wi-Fi Protected Setup) function is included to offer a convenient and fast connection method for users as well.
<b>Multiple OS Compliant</b>
The WNL-U555HA supports the most popular operating systems including Windows 2000, XP, Vista, Win7, Linux, and MAC OS X. With high speed capability, users can have higher wireless transmission speed anywhere, anytime.
<b>Software Access Point Function for Wireless Connection Sharing</b>
More than just being an adapter for PC and laptop connecting to high speed wireless network, the WNL-U555HA can also become a wireless access point. By applying the USB Wireless LAN Utility included in the package, users can switch the WNL-U555HA operation mode between Station mode and Access Point mode. When the WNL-U555HA is in the Access Point mode, it turns to a Wi-Fi Hotspot. The Wi-Fi supported devices such as iPhone / Android / Symbian / Windows Phone / iPod Touch / iPad / NDS / PSP can connect to it and share the wireless access easily. Therefore, travelers would then be worry-free to connect to Internet wirelessly via the WNL-U555HA when there is only wired Internet available anywhere.
<b>Easy Installation Wizard</b>
The WNL-U555HA provides an easy installation wizard in 35 languages. It guides users to easily complete the product installation step by step through the whole process.
