Paper handling
| Auto Document Feeder (ADF) media weight |
50 - 105 g/m² |
| Maximum scan area (ADF) |
216 x 5080 mm |
| Maximum ISO A-series paper size |
A4 |
| Media thickness (min) |
1.2 mm |
| Scanning media types supported |
Business Card, Plastic Card |
Performance
| Maximum duty cycle |
100000 pages per month |
| Scan drivers |
TWAIN |
| Button functions |
Down, Scan, Up |
| Daily duty cycle (max) |
3000 pages |
| Scan to |
OCR |
| Sensor type |
Dual CIS |
| Scan file formats |
JPG, PDF, TIFF |
| Light source |
LED |
Other features
| Downloadable software |
Plustek DocAction, NewSoft Presto! BizCard 6, NewSoft Presto! PageManager 9, Plustek MacAction, ABBYY FineReader 12.0 Sprint, |
Scanning
| Film scanning |
N |
| Output monochrome depth |
1 bit |
| Output colour depth |
24 bit |
| Output grayscale depth |
8 bit |
| Optical scanning resolution |
600 x 600 DPI |
| Input colour depth |
48 bit |
Input capacity
| Auto document feeder (ADF) input capacity |
50 sheets |
Power
| Input voltage |
24 V |
| Current |
0.75 A |
| Power supply type |
DC |
Ports & interfaces
| Standard interfaces |
USB 2.0 |
System requirements
| Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.8 Mountain Lion |
| Minimum hard disk space |
800 MB |
| Minimum RAM |
1000 MB |
| Minimum processor |
Pentium IV 2.0 GHz |
Additionally
| Scan type |
ADF scanner |
| Minimum scan area (Auto Document Feeder) |
13.2 x 13.2 mm |
| ADF scan speed (colour, A4) |
25 ppm |
| Colour scanning |
Y |

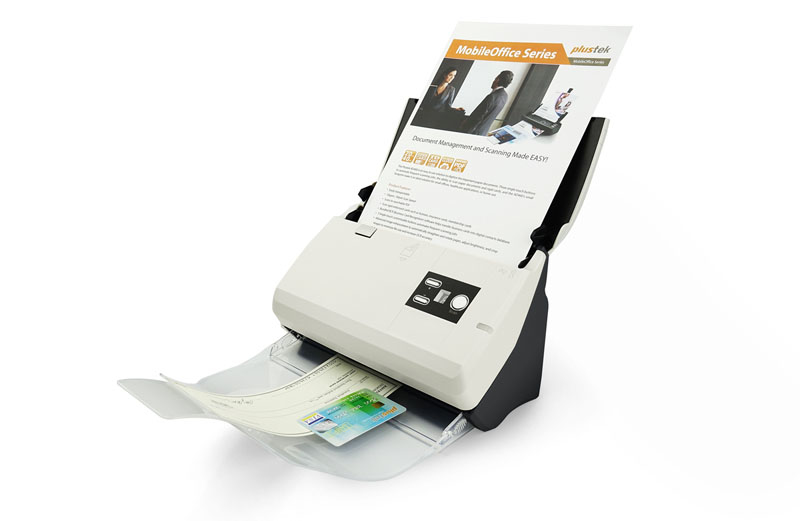

CIS x 2, 600 dpi, ADF, USB 2.0, 263 x 132 x 148 mm, 1.9 kg
The PS30D scanner deliver speed, image quality, and great paper handling, along with easy integration and compatibility with document imaging applications. Designed to perform in today’s demanding working environments, the PS30D effortlessly handles mission-critical or routine daily scanning tasks, thanks to scanning speeds up to 30ppm in Grayscale (200 & 300dpi) and an impressive 25ppm in colour (200dpi).
Easy to perform scanning
The compact and modern PS30D fits easily onto any office desktop. Daily tasks can be performed with one-touch simplicity to boost users’ productivity, thanks to nine programmable job buttons and user friendly DocAction software. Numerous features such as Auto Color Detection, Auto Rotate for Text Orientation, Multi-image output, Remove Blank Pages, Remove Punch Holes, Remove Background, Denoise, Character Enhancement are included, so there’s no need to pre-sort your documents before scanning. Simply load and then let the PS30D do the work for you. An optical resolution of 600dpi, plus all the latest image processing features, ensures outstanding quality results every time.
Robust performance
The PS30D provides one-touch document imaging, perfect for the smaller organization. Capable of handling up to 3,000 scans a day, the PS30D gets through peak workloads effortlessly. A 50 sheet document feeder means large batches of documents can be scanned in one quick scan operation saving you more time.
Reliable scanning
The PS30D solutions from Plustek support workgroup with leading edge document imaging technology. A smooth paper path and Plustek’s Retard Roller Technology provide outstanding reliability across a diverse range of media types. You can handle anything from fragile documents to thick card and embossed media. It’s even possible to scan A3 documents in Folio mode: unique for a scanner of this type. Long paper scanning is also supported, with capability to scan documents up to 2 metres in length. The PS30D is over 40% more energy efficient than other similar scanners, and meets energy star.
Device Features
Auto Deskew, Auto Crop, Auto Size for Page Detection, Gamma, Contrast, Brightness, Colour Dropout (RGB), Image Edge Fill, Preview, Page Size, Scan Mode, Multi-image Output, Job Function, Merge Page/Split Page, Card Scanning Mode, Outputs scanned documents in a variety of formats such as PDF, JPEG and TIFF formats. It can also recognize text using OCR and create multi-page pdfs with automatic document feeders. The PS30D works on Windows, Mac, and Linux
Auto Threshold
Automatically thresholds the current image into a binary black and white image.
Auto Rotate
Automatically rotates document based on the contents of the document.
Auto Crop & Deskew
Automatically straightens and crops image to the document's actual size.
Auto Mode
Automatically detects document color and scans document in color, grayscale or black & white mode.
Multi-Image Output
Scans and saves documents in 2 or 3 modes at same time.
Color Dropout
Removes red, green or blue color when scanning forms.
Blank Page Removal
Automatically removes blank pages without manual editing.
